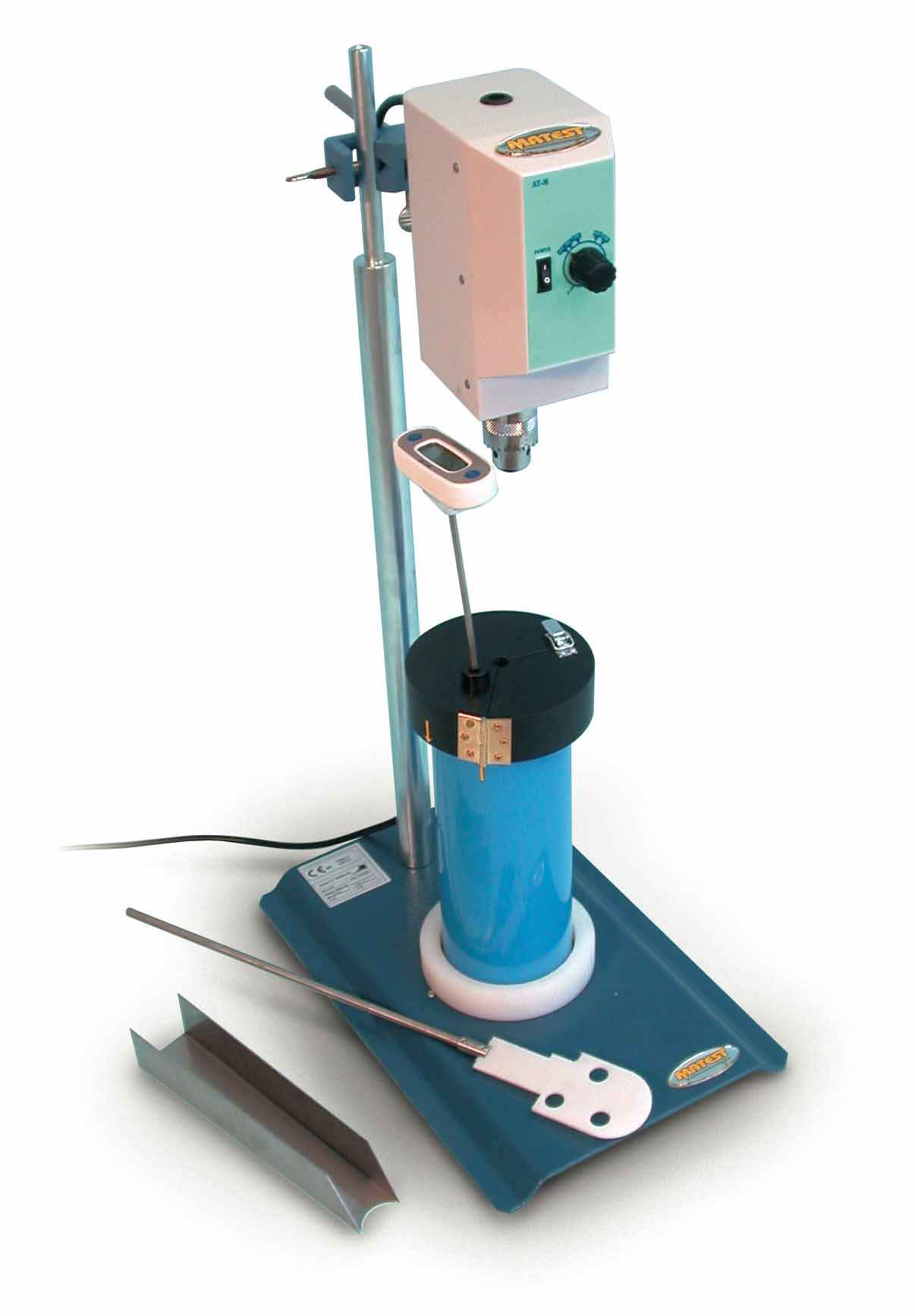

REACTIVITY TEST APPARATUS
This apparatus is used for determining the reactivity on slaking of ground quicklime.
The equipment consists of a Dewar vessel 1000 ml capacity complete with cover, electric stirrer 300 rpm. complete with stirring paddle (propeller), base with stand, digital thermometer range -50 +200°C. subd. 0,1°C., accessories.
Power Supply: 230V 1ph 50Hz
Dimensions: 400 x 250 x 750 mm
Weight: 10 kg approx.
AIR CONTENT METER 0,75 LITRE, ELECTRI
Identical to mod. E028, but with vessel having 0,75 litre capacity, conforming to EN 413-2 Specification.
, AIR CONTENT METER, 1 LITRE, ELECTRIC
Same as mod. E027, but with incorporated an electric mini-compressor giving air pressure and keeping it constant all along the test.
Power supply: 230 V 1 ph 50 Hz
AIR CONTENT METER 0,75 LITRE, MANUAL
Identical to mod. E027, but with vessel having 0,75 litre capacity, conforming to EN 413-2 Specification.

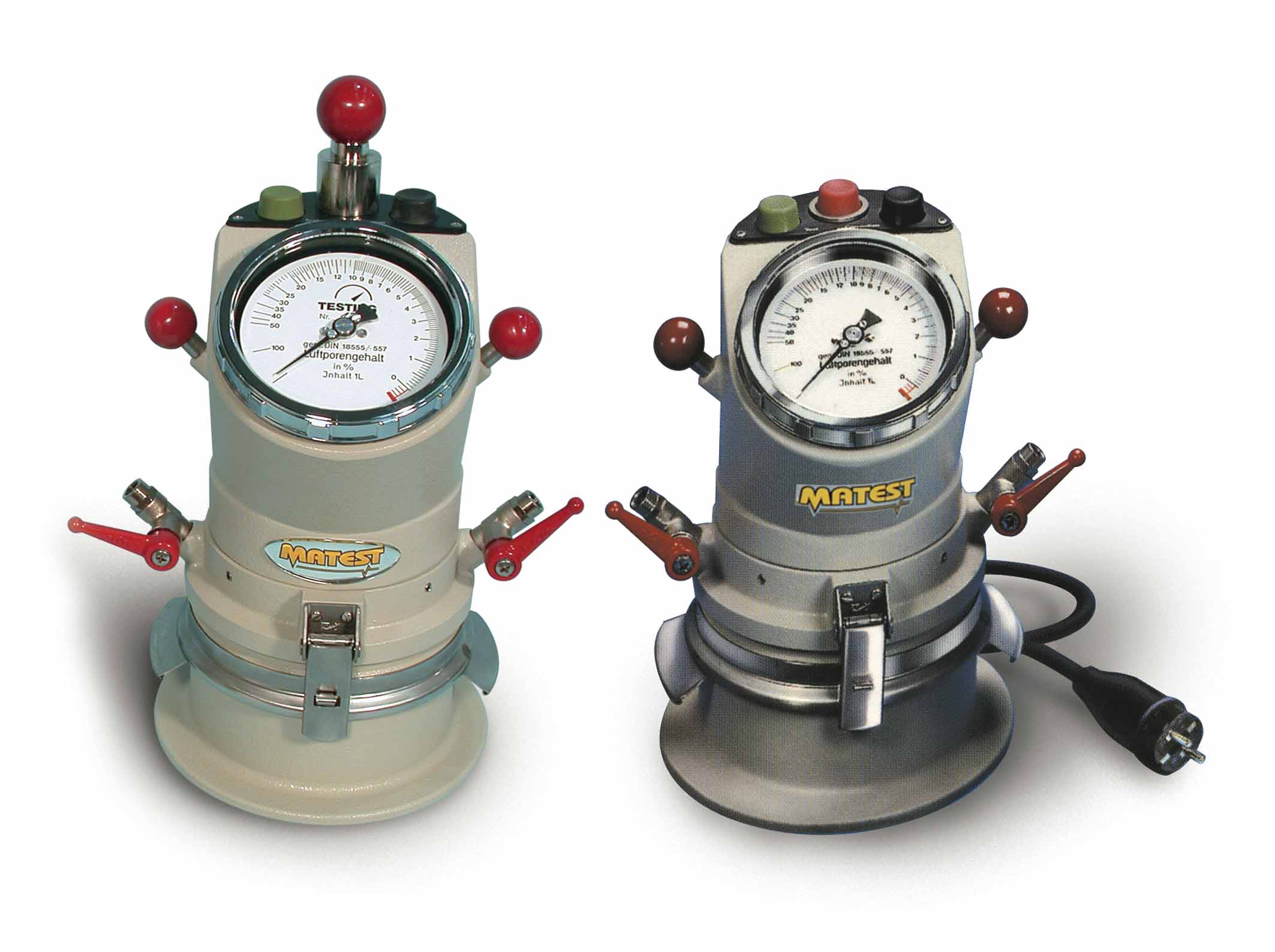

AIR CONTENT METER 1 LITRE, MANUAL
Designed to determine the air content in cement mortar, cement paste and lime mortar.
Made from cast aluminium, the test pot one litre capacity and the upper part are air-tight sealed by means of two quick action spring clamps.
The whole is connected to a dial gauge directly indicating the air entrainment in percentage, with range 0 - 50%.
A built-in operated air pump is also included.
The push-buttons TEST and CORRECTION are arranged to perform the test in a simple and quick system.
Dimensions: dia. 200 by 320 mm
Weight: 3,5 kg

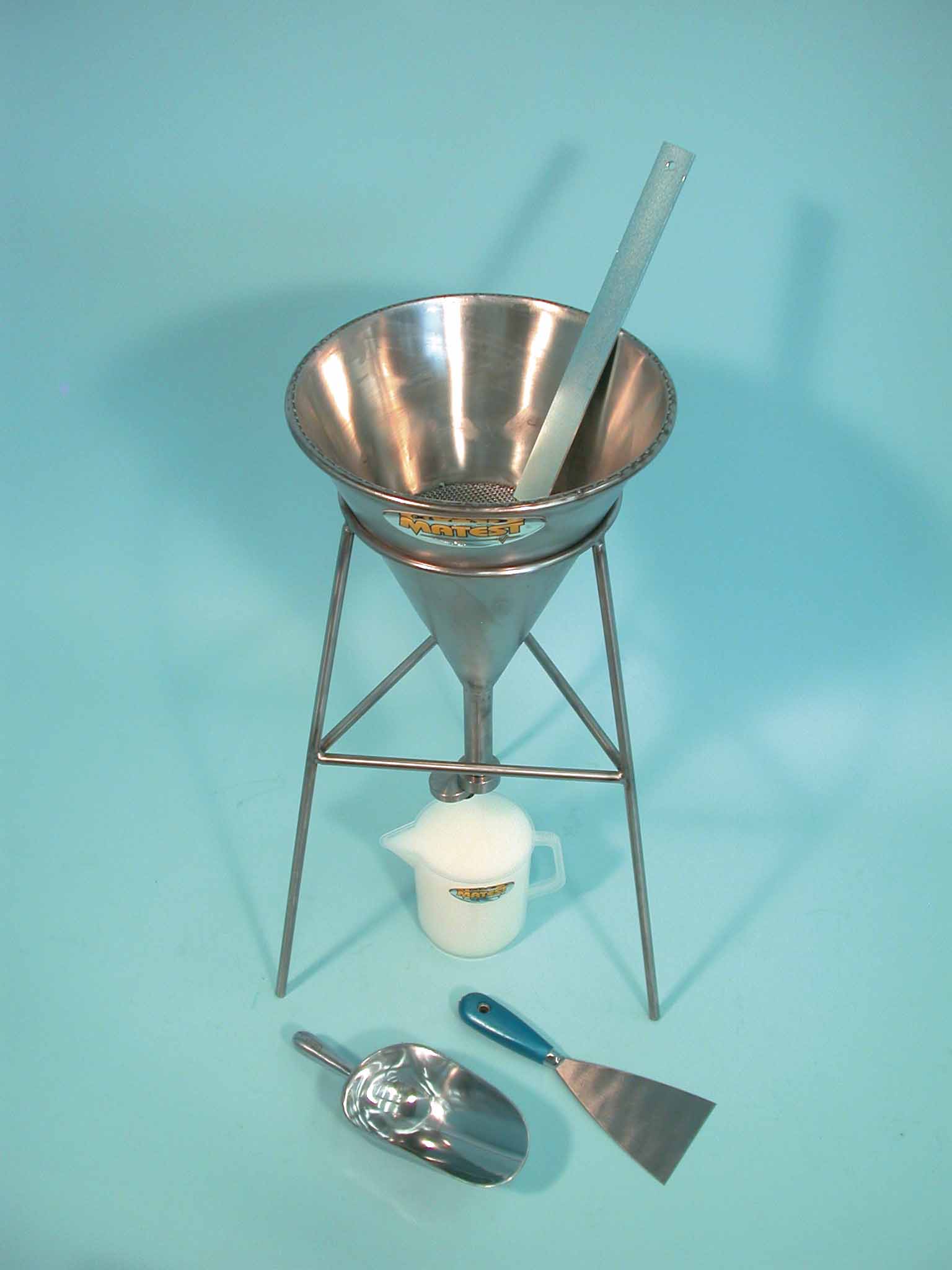

BULK DENSITY OF CEMENT
This apparatus is used for the measurement of the apparent density (bulk density) of powders and non-cohesive materials.
It consists of sieve funnel with tripod, unit weight measure 1 litre capacity, spatula, straight edge, aluminium scoop.
The discharge hole of the funnel has 8 mm dia.
Dimensions: dia. 350 x 520mm
Weight: 5 Kg
PACKAGED CEMENT TUBE SAMPLER
Used to sample cement homogeneously from cement bags.
Dimensions: dia. 32 x 1050mm
Weight: 3 Kg
BULK CEMENT SAMPLER
Used to sample cement in bulk storages or shipment.
Brass made, it consists of two concentric tubes with slots.
Inside tube volume is 3 litres approx.
Dimensions: dia. 40x1500mm
Weight: 5 Kg

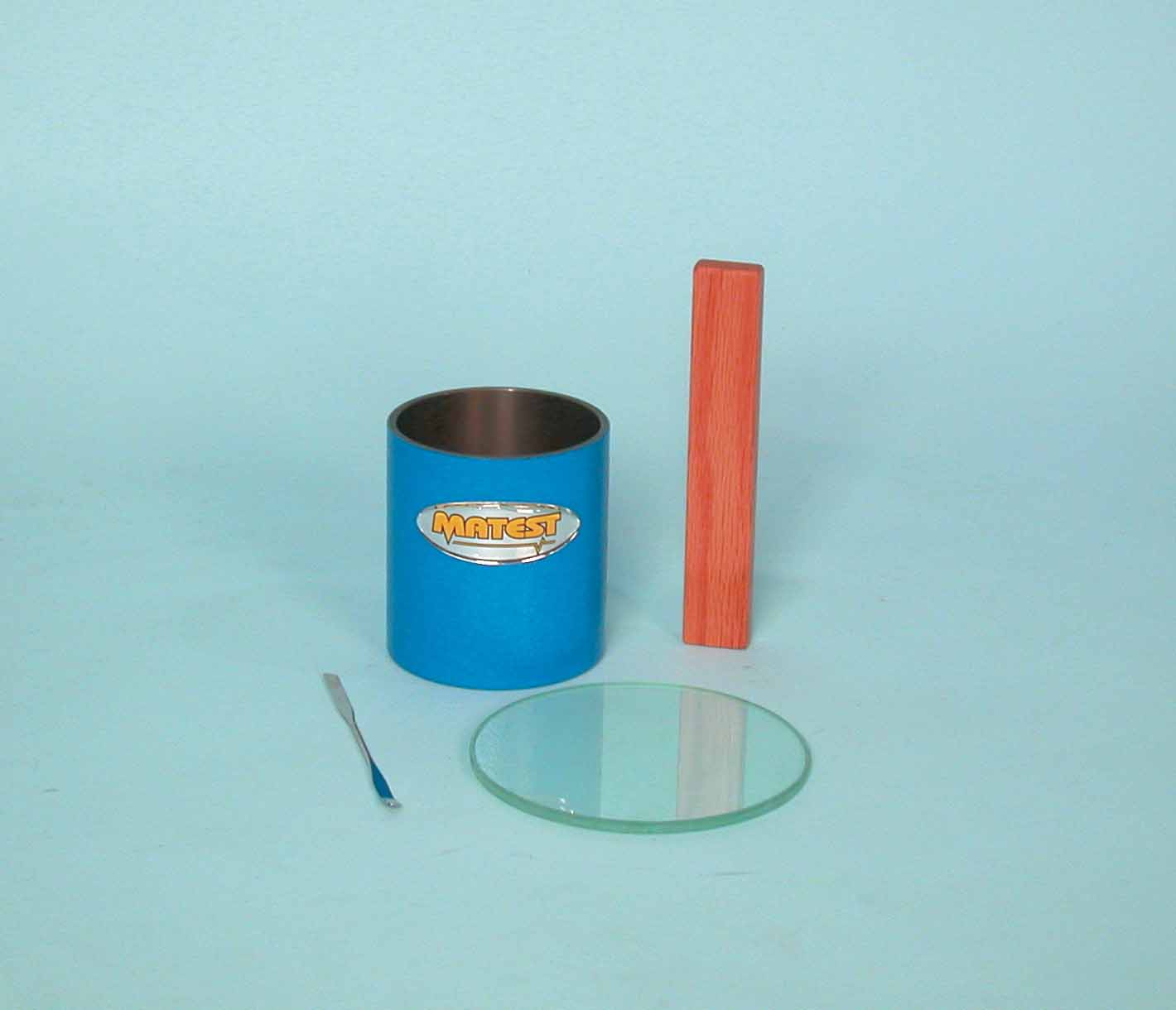

MEASURER 400 ml CAPACITY
Designed to determine the air content of freshly mixed mortars by the density method.
Steel made, internal diameter 76,2x88,1 mm height.

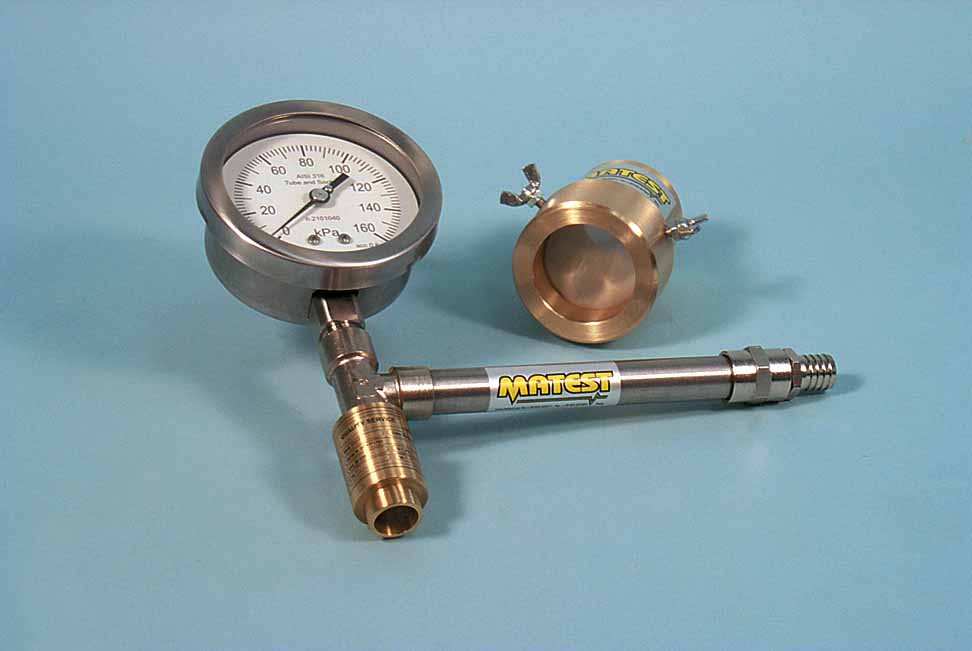

FINENESS OF FLY ASH BY WET SIEVING
The set, brass made, consists of: sieve dia. 50 mm. with stainless steel mesh opening 0,045 mm, spray nozzle 17,5 mm ID with 17 holes dia. 0,5 mm, pressure gauge dia. 80 mm range 0-160 kPa, div. 5 kPa, fittings and connectors.
Weight: 3 kg

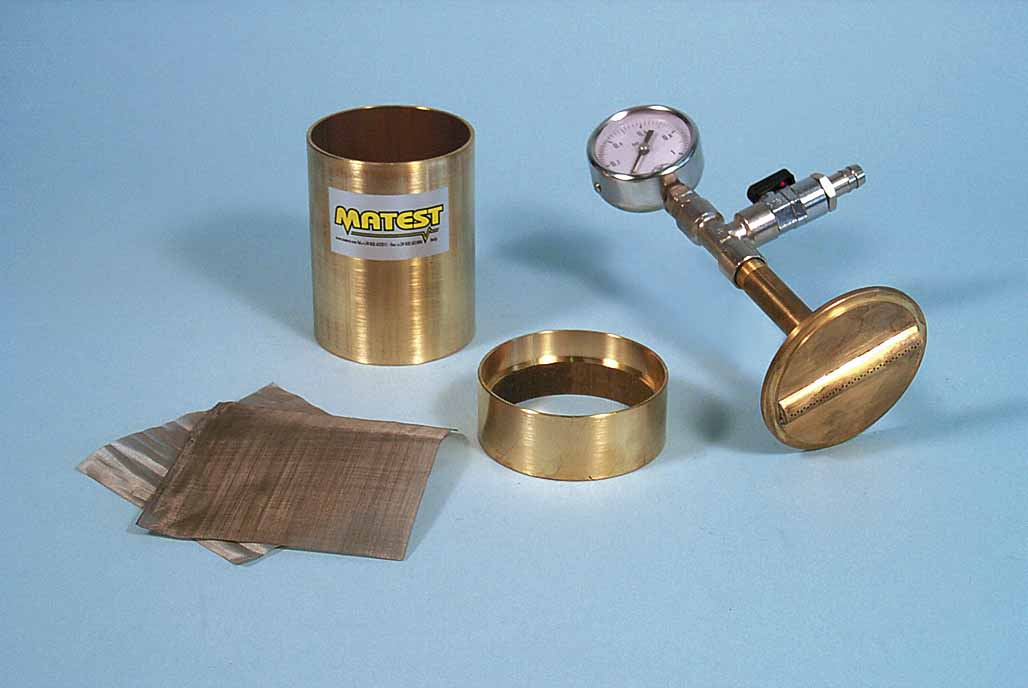

WATER FLOWING SIEVE DEVICE
Used to determine the fineness of cement.
It consists of a spr ying unit with feed cock and gauge; brass sieve body 85 mm dia.and 95 mm high with two stainless steel cloth disks having opening 0,18 and 0,09 mm.
A cement sample of 25 g. is placed inside the sieve and washed for two minutes by means of the sprying unit put on top of the sieve.
The residue of the retained cement is obtained by drying the sieve at 110 °C .
Weight:3 Kg

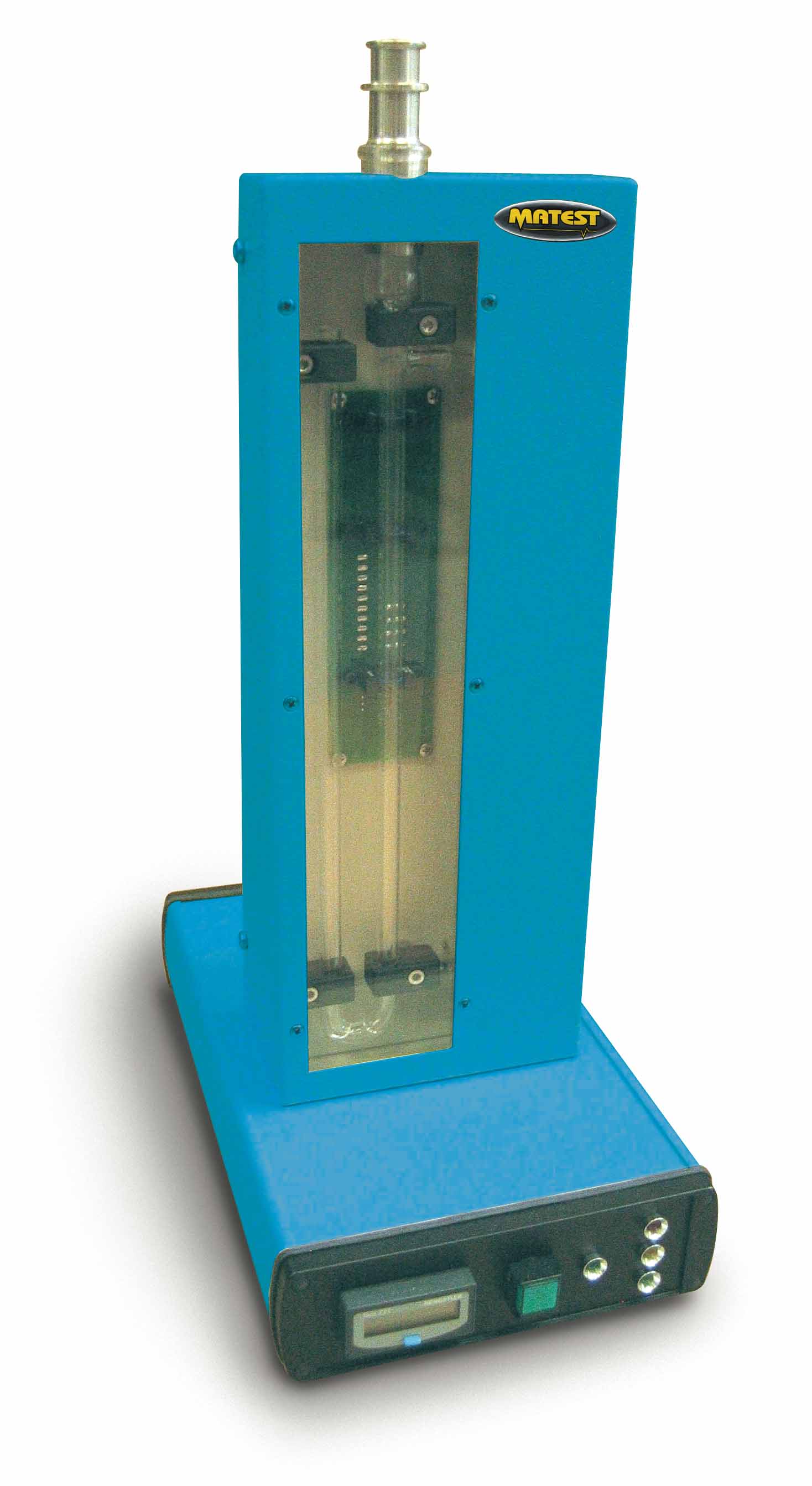

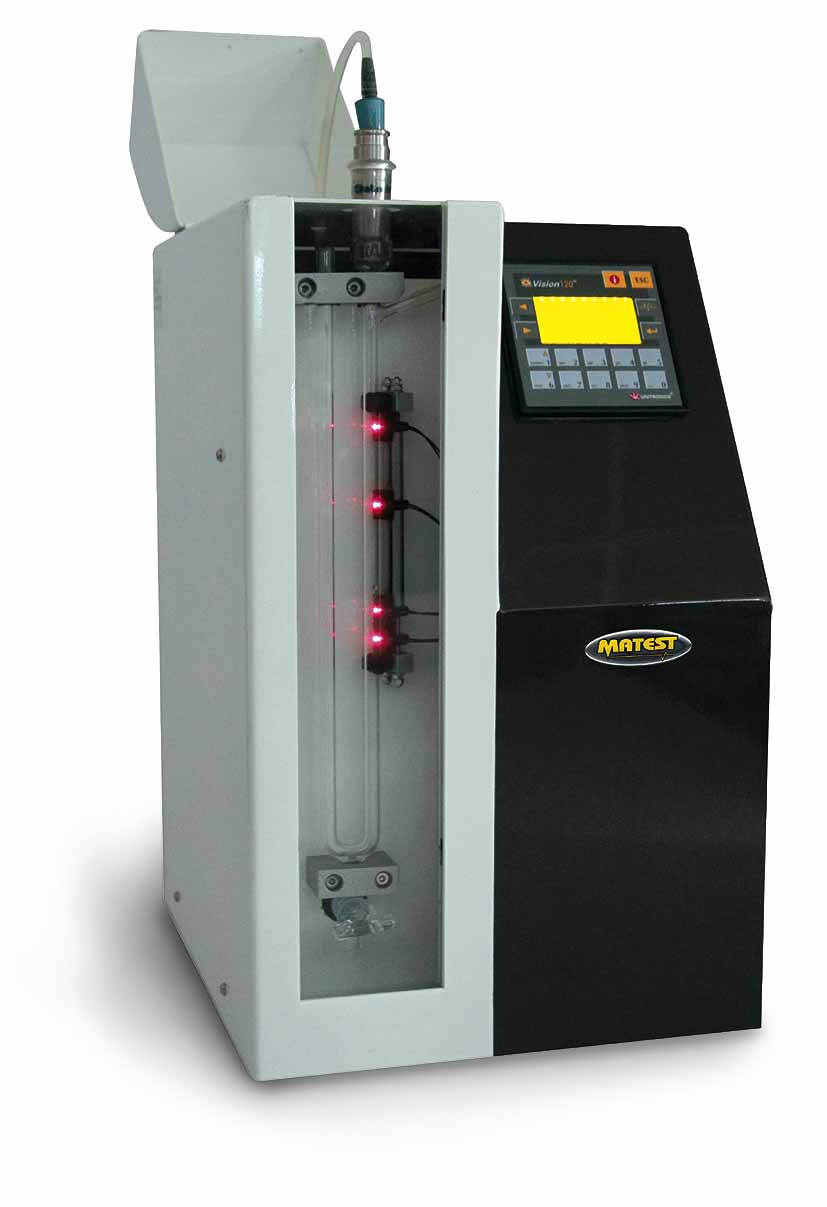

BLAINE AIR PERMEABILITY APPARATUS, AUTOMATIC
This automatic electronic apparatus with microprocessor is equipped with an automatic airproof device.
The apparatus consists of a flat enclosure with a manometer column and with 4 components stainless steel measuring cell.
Depending to the cement porosity and its density, the equipment calculates automatically the masse that you have to test, determines the constant K according to standard cement, records the test results with possibility to elaborate an average value of different tests. RS 232 port.
The defining of final Blaine value is automatically given by the apparatus.
Supplied complete with accessories.
Power supply: 230V 1ph 50Hz
Dimensions: 280x325x410mm
Weight: 10 kg

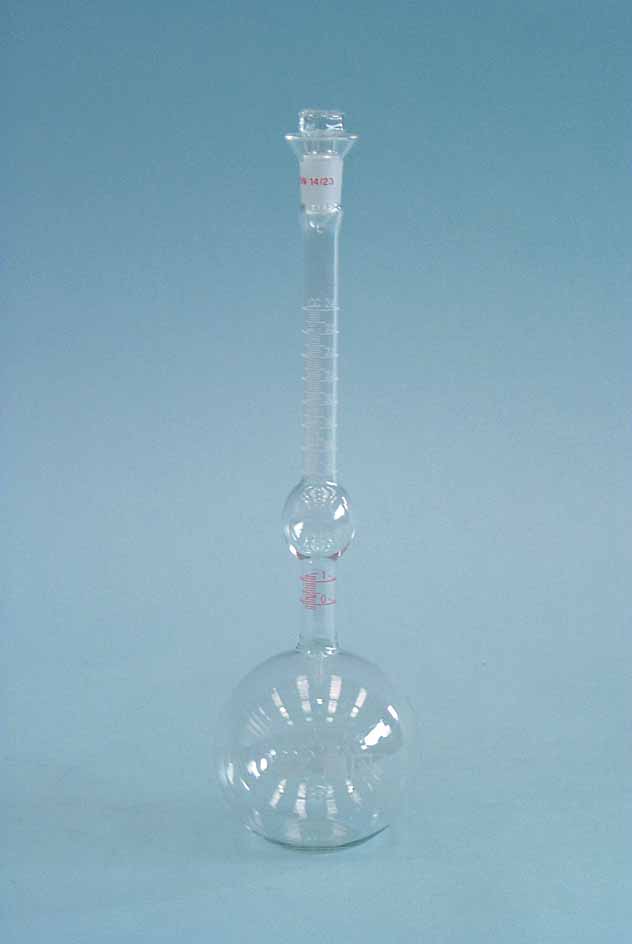

LE CHATELIER FLASK
Used to determine the relative density (specific gravity)of hydraulic cement and lime.
Capacity 250 ml.
The neck is graduated from 0 to 1 ml and from 18 to 24 ml with divisions of 0,1 ml.
Weight: 500 g
ELECTRONIC BLAINE AIR PERMEABILITY APPARATUS
This Electronic Blaine Air-Permeability Apparatus consists of a flat enclosure with a manometer column and with a 3-component measuring cell. The testing procedure is started by pressing the START button. The test procedure is then being executed automatically whereby the time is being shown.
The defining of the final Blaine value must be done manually by the enduser.
Supplied complete with digital thermometer, filling oil, cone grease, funnel, filter paper,
brush, power cable with a two-pole and earthing-pin plug.
Class of enclosure protection: IP-55
Power supply: 230V 1ph 50/60Hz 10W
Dimensions: 170x290x450 mm
Weight: 3,5 kg
BLAINE AIR PERMEABILITY APPARATUS
Used to determine the fineness of Portland cement in terms of the specific surface expressed as total surface area in square centimeters per gram of cement.
The apparatus is supplied with glass U-tube manometer with valve, steel stand, test cell with disk and plunger all in stainless steel, rubber aspirator bulb, 1000 filter paper disks, manometric liquid, vaseline grease for better coupling tube/cell, funnel, brush.
Dimensions: 220x180x470mm
Weight:12 Kg
