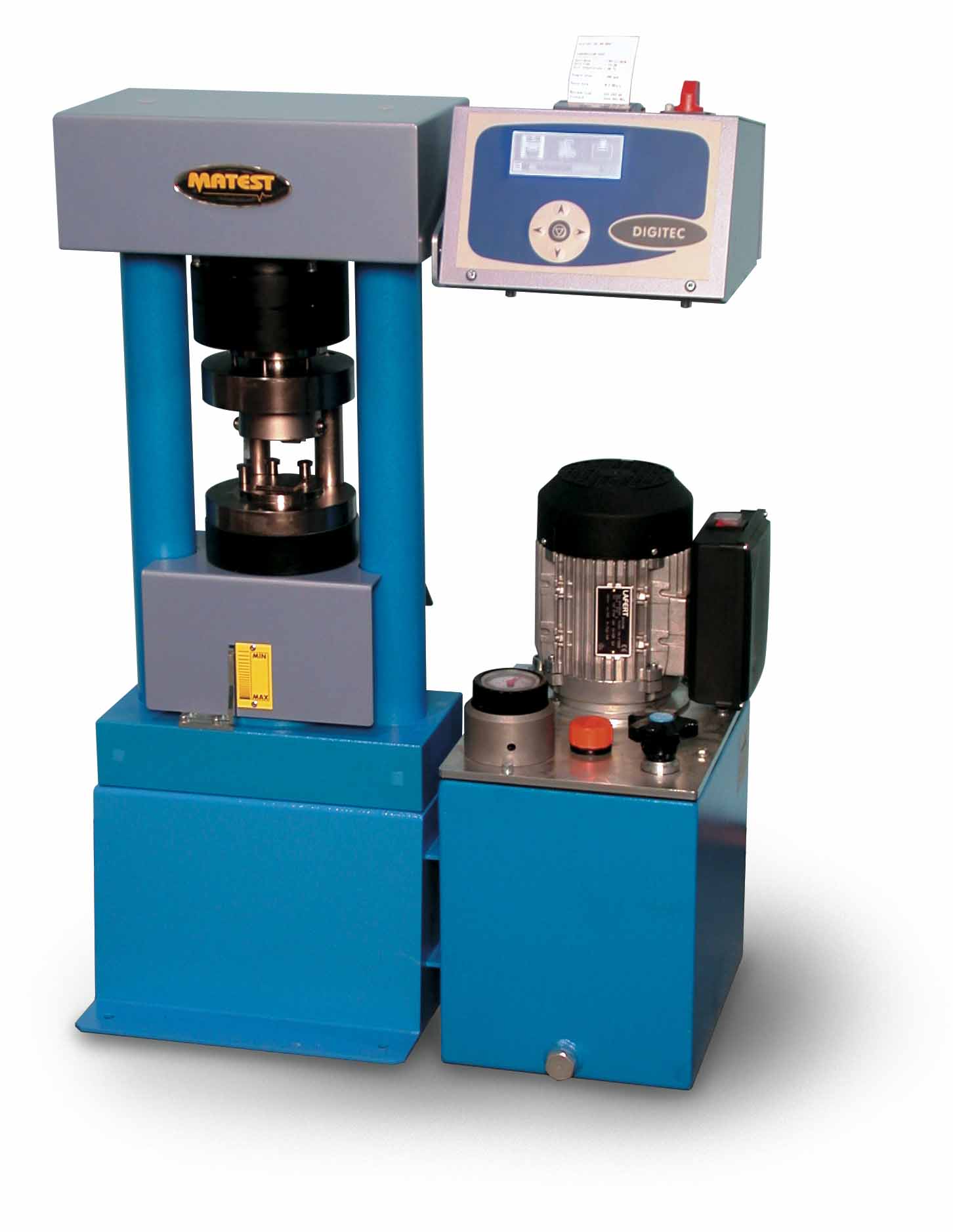

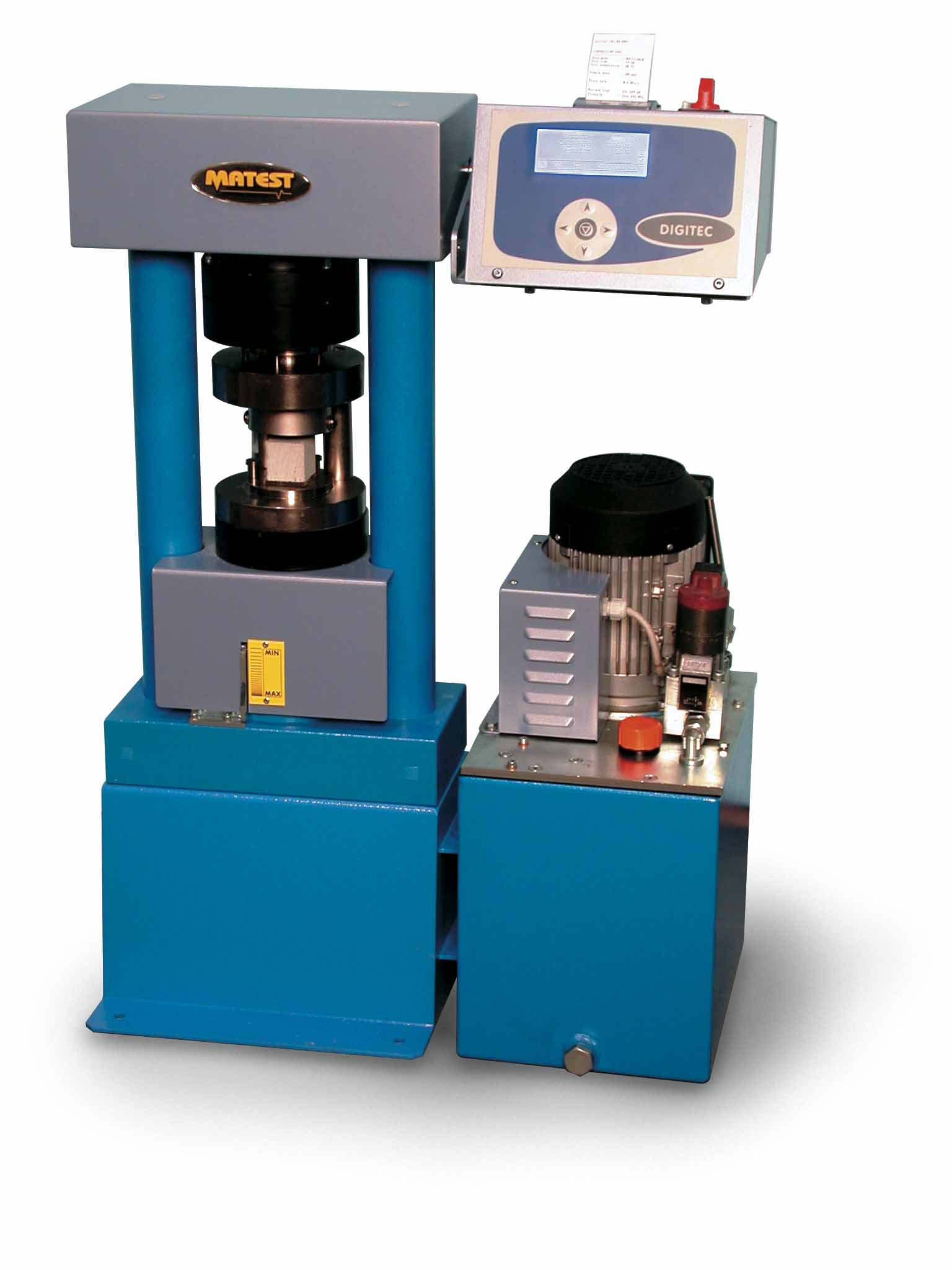

DIGITEC - 2 CHANNELS CONTROL UNIT, SEMI-AUTOMATIC

Two-channels computerised graphic display system to control and manage all sorts of semi-automatic testing machines, for acquisition, display, processing, printing and saving the test data and certificates, with software for remote control from PC.

TO UPGRADE OR COMPLETE YOUR CONCRETE OR MORTAR COMPRESSION AND FLEXURE TESTING MACHINE (also from other manufacturers).
The system can manage and process the data in compliance with EN 12390 Specification and the different International Standards, for the following tests:
• Compression on concrete
• Flexure on concrete
• Splitting on concrete cubes and cylinders
• Compression and flexure on mortar
• C127N On board graphic printer
• RS232 connection with remote control to PC

Specifications:
- 2 analogue-digital channels connectable to two different compression/flexure frames.
- Simple and immediate set up of the parameters and test execution, menu driven. The use does not require specialised staff.
- Continue load display.
- Breaking load detection.
- Automatic elaboration of the specific resistance value.
- Permanent file up to 1000 tests and file of 100 different types of specimens.
- Graphic display with high resolution: 192x64 pixels.
- Selectable measuring force: kN, lb
- Languages: English, French, German, Spanish, Italian, Polish, Czech, Turkish.
- Class: 0,5% starting from 10% of maximum value, on request from 1% of maximum value.

Technical structure
- Acquisition and data processing system at 24 bit, effective resolution: 17 bit
- Operator interface composed by 5 multi-functions pushbuttons; function icons shown on the display.
- The two analogue-digital channels accept sensors, transducers or load cells at 2mV/V
- Automatic linearity guided algorithm with very high granted accuracy (Class 0,5)
- Different programmable safety devices for the machine or the specimen as the possibility to introduce a percentage of the maximum value reached during the text execution, thermal protection of the motor and different other settable alarms.
- The firmware contains a memory of the most used specimens: area, weight, specific weight.
- Possibility of personalisation for special sized samples.
- RS232 interface: it allows transferring the data during the test or the test results directly to PC (via Microsoft Hyperterminal) or the remote control of the system by the UTM2 software (accessory)

Menu
The display shows date and time, currently applied load and single load, latest effected tests, pace rate control, rapid commands functions, configuration in use, analogue channel and activated alarm.

Power supply: 230V 1ph 50/60Hz
Dimensions: 230x145x240mm
Weight: 4 kg

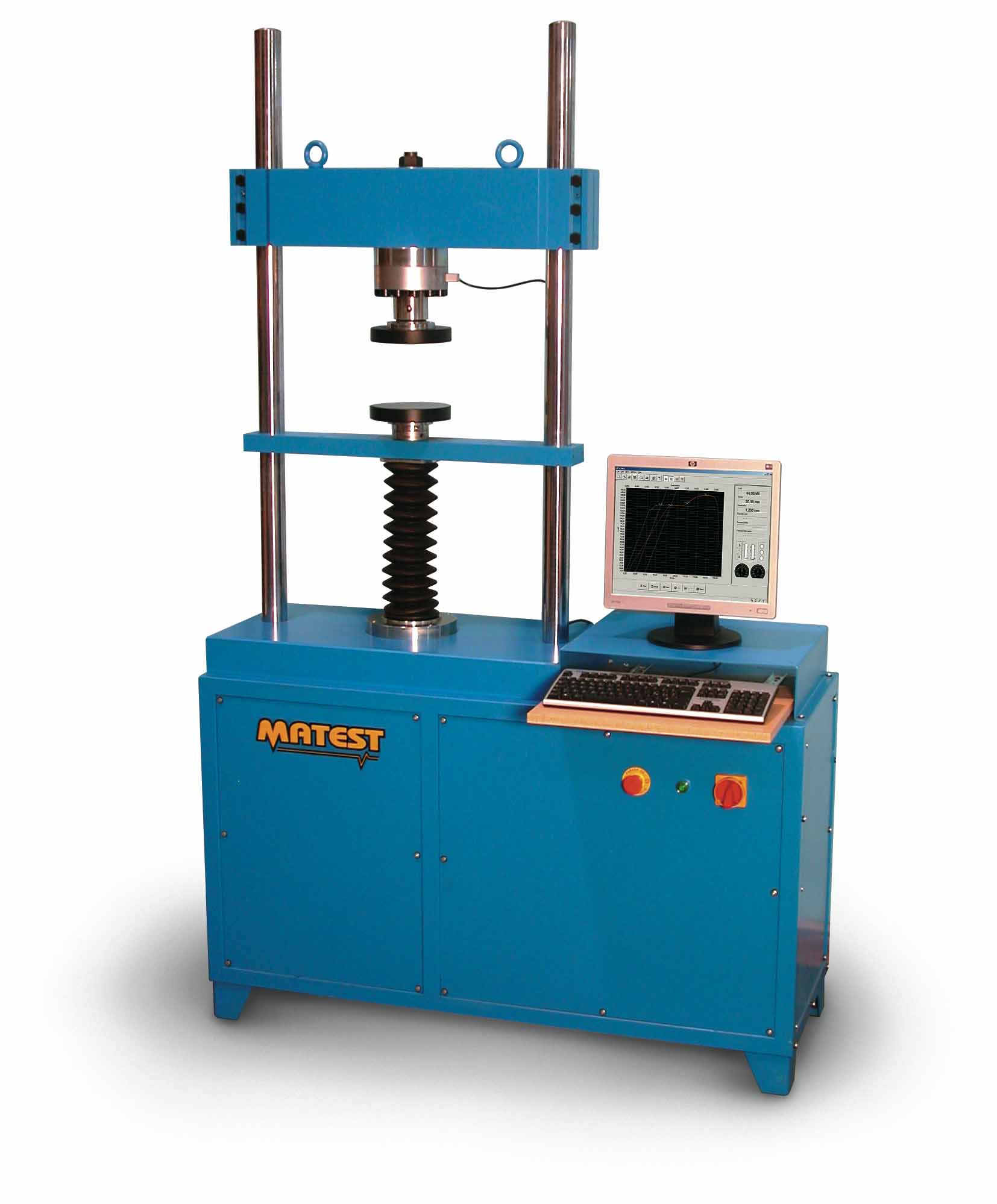

MULTI-TESTER 200kN

UNIVERSAL ELECTROMECHANICAL FRAME FOR COMPRESSION, FLEXURE, TENSILE TESTS OF CONSTRUCTION MATERIALS WITH SERVO-CONTROLLED SYSTEM OF LOAD OR DISPLACEMENT/STRAIN.

The machine is composed by a sturdy base containing the transmission components and the hardware control instruments.
The base holds two columns, made of high resistance steel with ground hard chrome surfacing.
The upper crosshead can be adjusted in height, to hold the accessories to perform the specific tests.
The lower mobile crosshead is operated by a recirculating ball screw system, that through a servo-controlled motor, assures the correct application of load and constant speed. The two crossheads foresee couplings to fix the different test devices (see accessories).
The stress is measured by an electric load cell, and the crosshead displacement by transducers, all incorporated into the machine. It is possible to fix electric load cells of lower capacity, to satisfy specific test requirements.

Technical specifications:
- Max. load: 200kN (both compression and tensile)
- Max. vertical daylight: 800mm (without accessories)
- Max. vertical daylight with compression platens: 700mm
- Compression platens diameter: 180mm (upper platen on seat ball)
- Distance between columns: 610mm
- Crosshead travel: +/- 200mm (400mm total)
- Testing speed range: from 0,01 to 100 mm/min
- Load rate: from 1 N/s to 5 kN/s
- Displacement resolution: 0,01mm with accuracy better than 0,2%
- Machine class: 1

The Multi-Tester is supplied complete with electric load cell 200kN, crosshead displacement transducers, software for Duriez, Marshall, CBR tests, PC with LCD monitor, keyboard, mouse, connection cables, upper and lower compression platens.
“Not included”: printer and accessories for the specific tests that must be ordered separately (see accessories).

Power supply: 230V 1ph 50Hz 850W.
Dimensions: 1350 x 510 xh 2250 mm.
Weight : 850 kg approx.

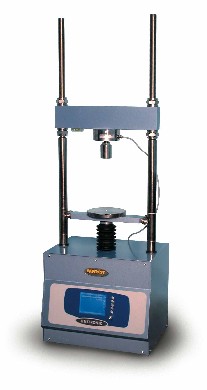

UNITRONIC 50KN

UNIVERSAL MULTIPURPOSE COMPRESSION/FLEXURAL AND TENSILE FRAME FOR:
- COMPRESSION / FLEXURAL TESTS, 50 kN MAX. CAPACITY LOAD
- TENSILE TESTS 25 kN MAX. CAPACITY LOAD (accessory S205-05)
WITH AUTOMATIC LOAD OR DISPLACEMENT/DEFORMATION CONTROL, for testing:

Soil:
- CBR (California Bearing Ratio),
- UNCONFINED COMPRESSION
- QUICK TRIAXIAL

Asphalt:
- MARSHALL
- SPLITTING TENSILE
- DIRECT SHEAR (Leutner) on the connection between bituminous strata

Concrete:
- FLEXURE ON BEAMS
- FLEXURE ON TILES

Cement:
- FLEXURE on 40x40x160mm specimens,
- COMPRESSION on cubes 40, 50, 70mm
- TENSILE on mortar briquettes (mod. S205-05)

Metal, plastic, wires, ropes, textiles, papers etc.
- TENSILE TESTS, 25kN max capacity load (mod. S205-05)

Clay blocks:
- PUNCHING

Rock and stones:
- UNIAXIAL SPLITTING TENSILE

Various materials:
By using suitable devices, Unitronic tester, within the limits of its max. 50 kN capacity for compression/flexural and 25 kN for tensile (accessory S205-05), performs compression, flexural, splitting tensile and direct tensile tests, with automatic load or displacement/deformation control.
The load is applied by a mechanical jack that is driven by a motor “brushless with closed loop through optic encoder” and controlled by a microprocessor. Stroke electric end switches are applied to the load piston to save the machine from accidental handlings.
The control panel is placed frontally and it is provided with a membrane having 6 multifunctional interactive pushbuttons driven by menu, a large graphic display and RS232 port for connection to PC.

Hardware and software specifications:
- Negative blue graphic display “320 x 240 pixel”
- 4 analogue A/D outputs for transducers or load cells.
- Permanent memory and clock calendar
- Fully automatic test processing with real time acquisition and visualization of the load/displacement or deformation, curve load/time/deformation.
- Memory of more than 100 tests, with possibility to display/delete tests from the file storage
- Multi-languages function: Italian, English, French, Spanish

Technical data:
- Maximum compression capacity: 50kN
- Maximum tensile capacity: 25kN (accessory S205-05)
- Adjustable testing speed from 0,01 to 51mm/minute
- Adjustable pace rate from 1 to 15000N/sec.
- Max. ram travel: 100mm
- Daylight between columns: 380mm
- Max. vertical daylight: 850mm

Power supply: 230V 1F 50/60Hz 1500W
Dimensions: 500x450x1450mm
Weight: 130 Kg approx

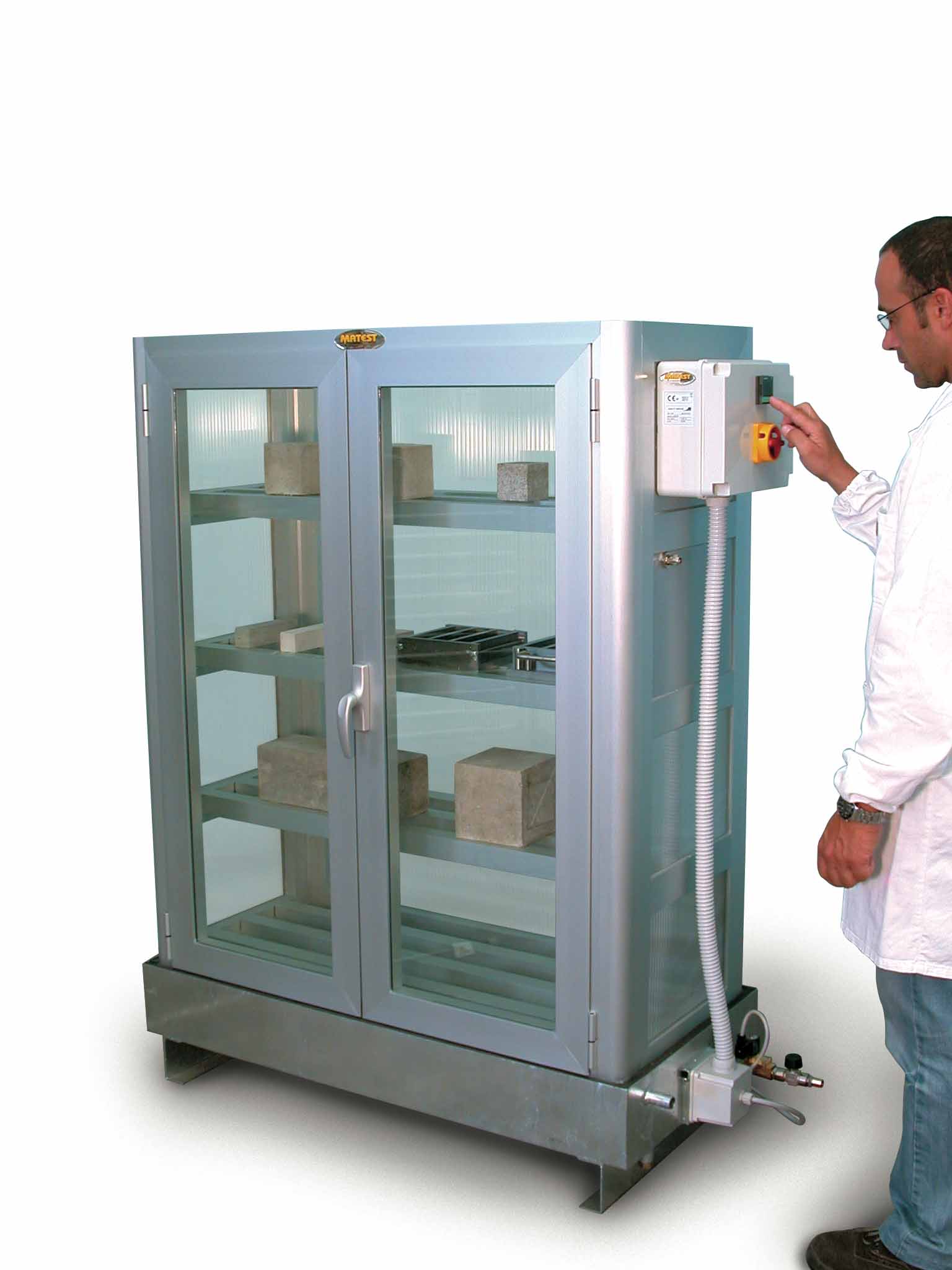

LARGE CAPACITY CURING CABINET

For curing large quantities of mortar, cement and concrete specimens at controlled humidity and temperature.
Aluminium and policarbonate made, it is complete with precision digital thermostat and four robust shelves. The humidity from 90% to saturation is maintained through water nebulizers activated by compressed air, and the temperature by an immersion heater and refrigerator unit (accessory mod. E141)
Temperature range: from ambient to +30 °C, accuracy ± 1 °C.
The cabinet requires a compressed air source. (see accessory)
Inside dimensions: 1090x470x1200 mm
Overall dimensions: 1370x540x1490 mm

Power supply 230 V 1ph 50 Hz 2000 W
Weight: 100 Kg

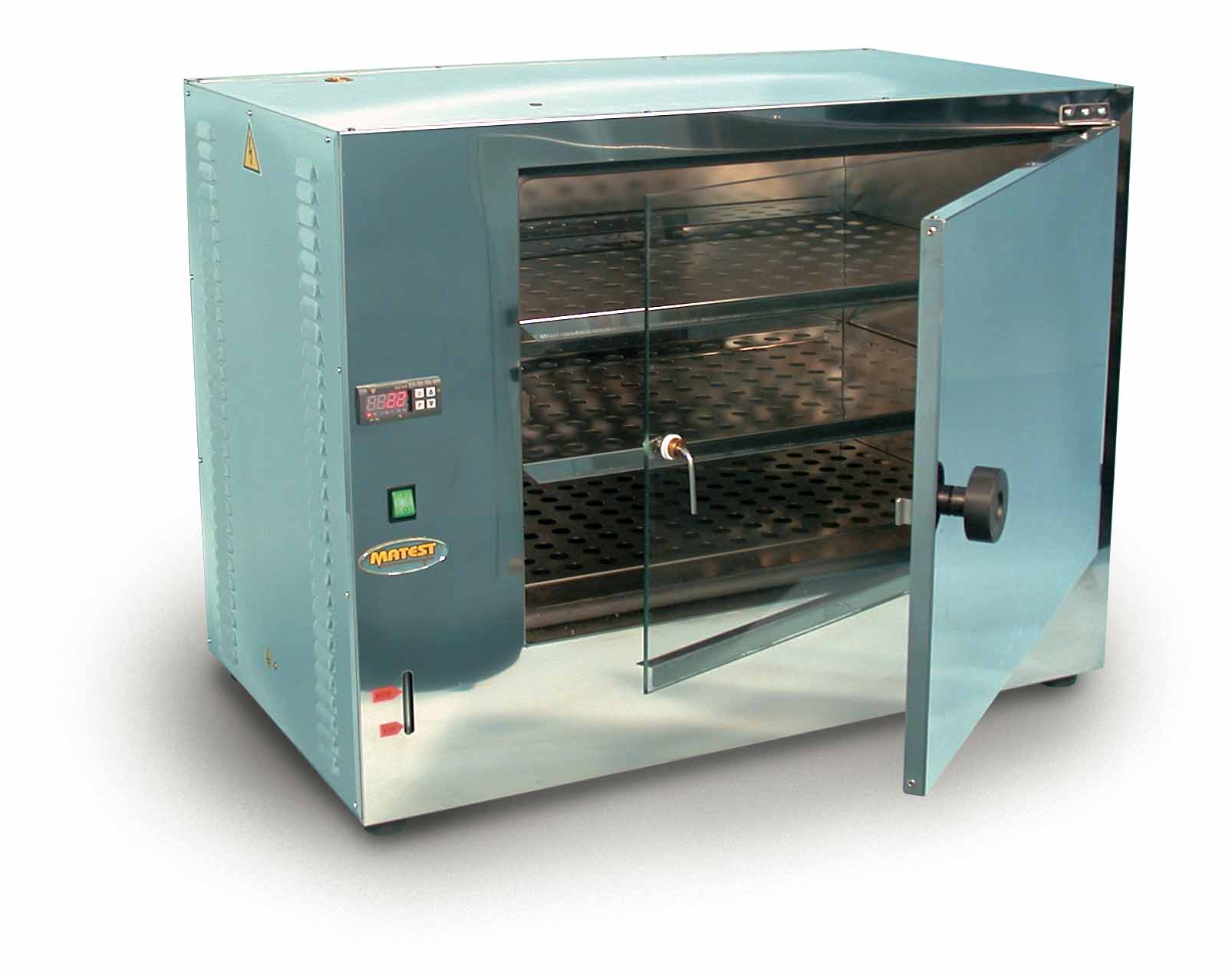

CURING CABINET

Both exernal and internal walls are stainless steel made, and insulated by a 50 mm. thick glass wool.
The cabinet has an inner inspection glass door.
Temperature range: from ambient to 70 °C, with digital thermostat.
A dual safety/thermostat with higher thermic threshold ensures safe working conditions.
Humidity range: 90% to saturation

Power supply: 230V 1ph 50/60 Hz 1000 W
Inside dimensins:620x440x400 mm
Overall dimensions: 900x700x800 mm
Weight: 60 Kg

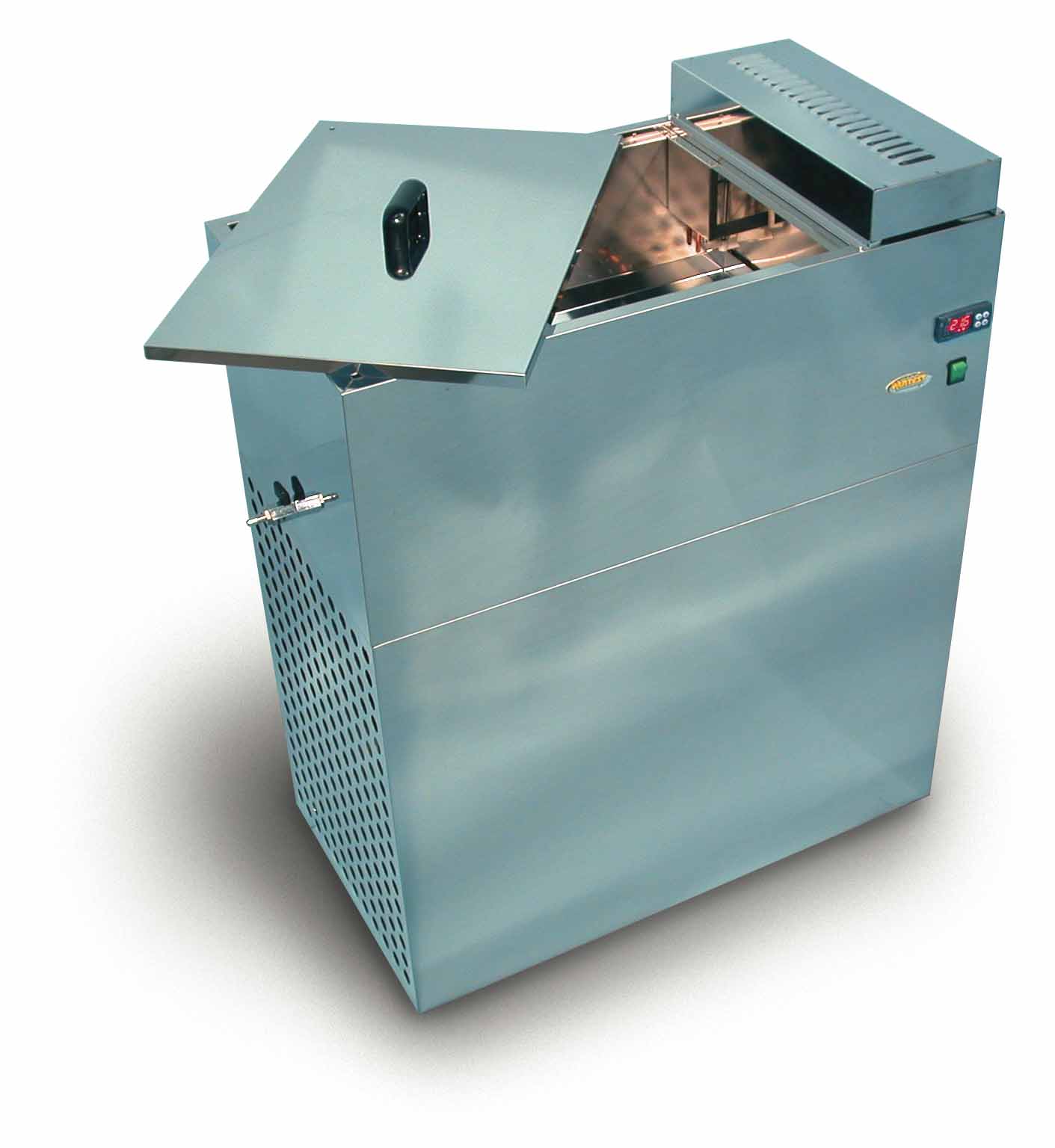

DIGITAL WATER BATH COOLING DEVICE

This test determines the effect of saturation and accelerated water conditioning on the indirect tensile strength of bituminous mixtures, by evaluating the effect of moisture with different sample conditions.

Temperature range: +3 to +95°C., accuracy +/- 1°C.
(EN 12697-12 and 12697-23 Standard require a temperature to be selected in the range of +5 to +25°C.)

Capacity: 42 litres
Inside dimensions: 510x350x230 mm
The bath can also be used for Marshall tests and general laboratory purposes.
