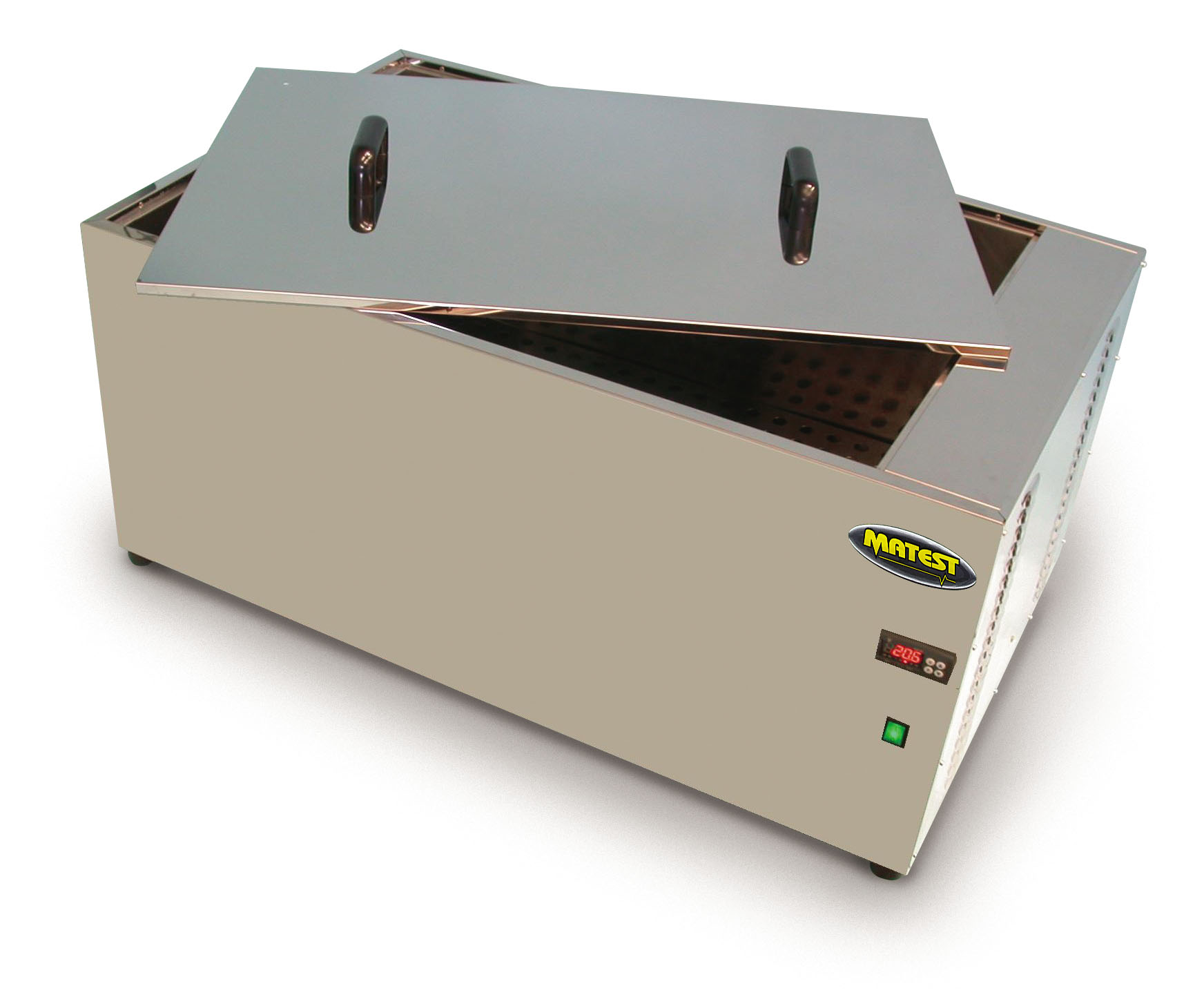

WATER DIGITAL CURING BATH, 200 LITRES CAPACITY
Double walled all stainless steel made, with wool insulation and water circulation electric stirrer, the bath ensures an uniform and constant temperature.
Temperature range: from ambient to +60°C. with accuracy of
+/- 0,4°C. at 20°C.
The bath is equipped with digital thermostat and a dual safety thermostat with higher thermic threshold ensuring safe working conditions.
A cooling coil device to be connected to the water net is used when room temperature exceeds the requested one, with possibility to reduce the bath temperature within the room and water net conditions.
The specimens are held by a perforated shelf spaced from the bottom.
E136-01 specifications:
Internal dimensions: 900x600x360 mm
Overall dimensions: 1050x680x430 mm
Power supply: 230V 1ph 50/60Hz 2400W
Weight: 55 kg approx.

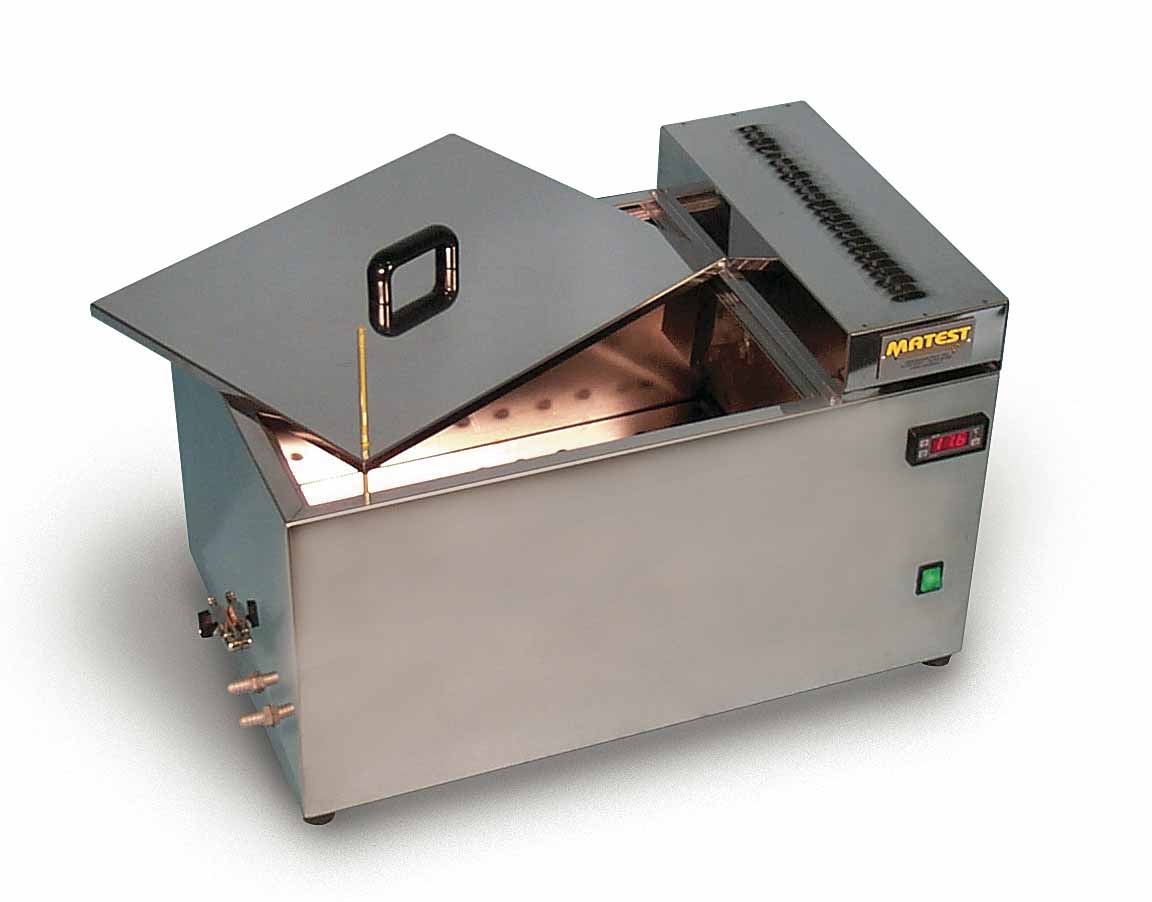

WATER DIGITAL CURING BATH, 40 LITRES CAPACITY
Double walled all stainless steel made, with wool insulation and water circulation electric stirrer, the bath ensures an uniform and constant temperature.
Temperature range: from ambient to +60°C. with accuracy of
+/- 0,4°C. at 20°C.
The bath is equipped with digital thermostat and a dual safety thermostat with higher thermic threshold ensuring safe working conditions.
A cooling coil device to be connected to the water net is used when room temperature exceeds the requested one, with possibility to reduce the bath temperature within the room and water net conditions.
The specimens are held by a perforated shelf spaced from the bottom.
E136 model can hold over 60 specimens 40,1x40x160 mm
Internal dimensions: 510x350x230 mm
Overall dimensions: 680x420x420 mm
Power supply: 230V 1ph 50/60Hz 2000W
Weight: 28 kg approx.
JOLTING APPARATUS High performance
Similar to model E130, but manufactured with oversized components, treatments and extremely accurate couplings for intensive use in heavy conditions.
Motor feeded by an inverter to grant the keeping of 60 revolutions per minute in any condition.
Weight: 93 kg

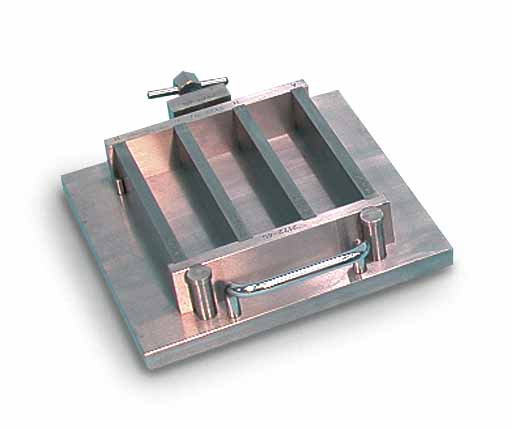

THREE GANG MOULD FOR PRISMS 40,1x40x160 mm, ITALCEMENTI MODEL
Three gang verified mould for prisms 40,1x40x160 mm, Similar to mod. E103, but with:
- Large base mm 240 x 245
- Weight: 11,850 Kg
Manufactured expressly for “Italcementi Group” cement factory.

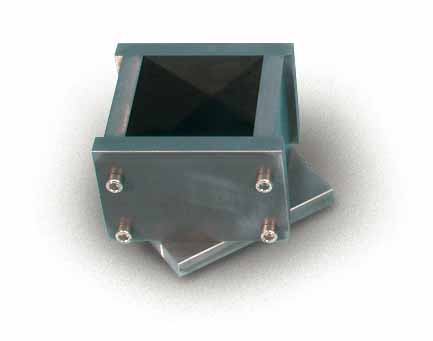

CUBE MOULD 70,7 mm
Made from steel with dimensions as specified by above Standard. Complete with base plate (three moulds required for each test).
Weight: 3 Kg

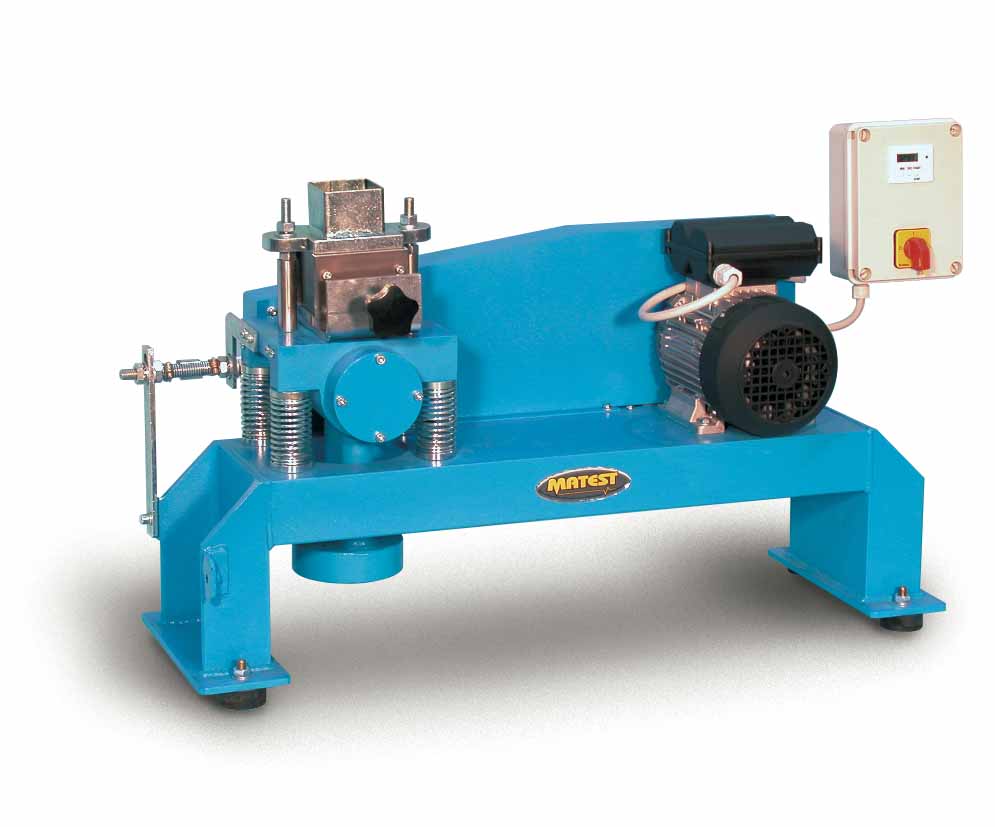

VIBRATING MACHINE FOR 70,7 mm CUBE MOULD
The mould is mounted on a vibration platform with excentric mechanism. The machine is supplied complete with separate control panel with timer, but “without cube moulds” to be ordered separately.
Power supply: 230V 1ph 50 Hz 250 W
Weight: 100 Kg

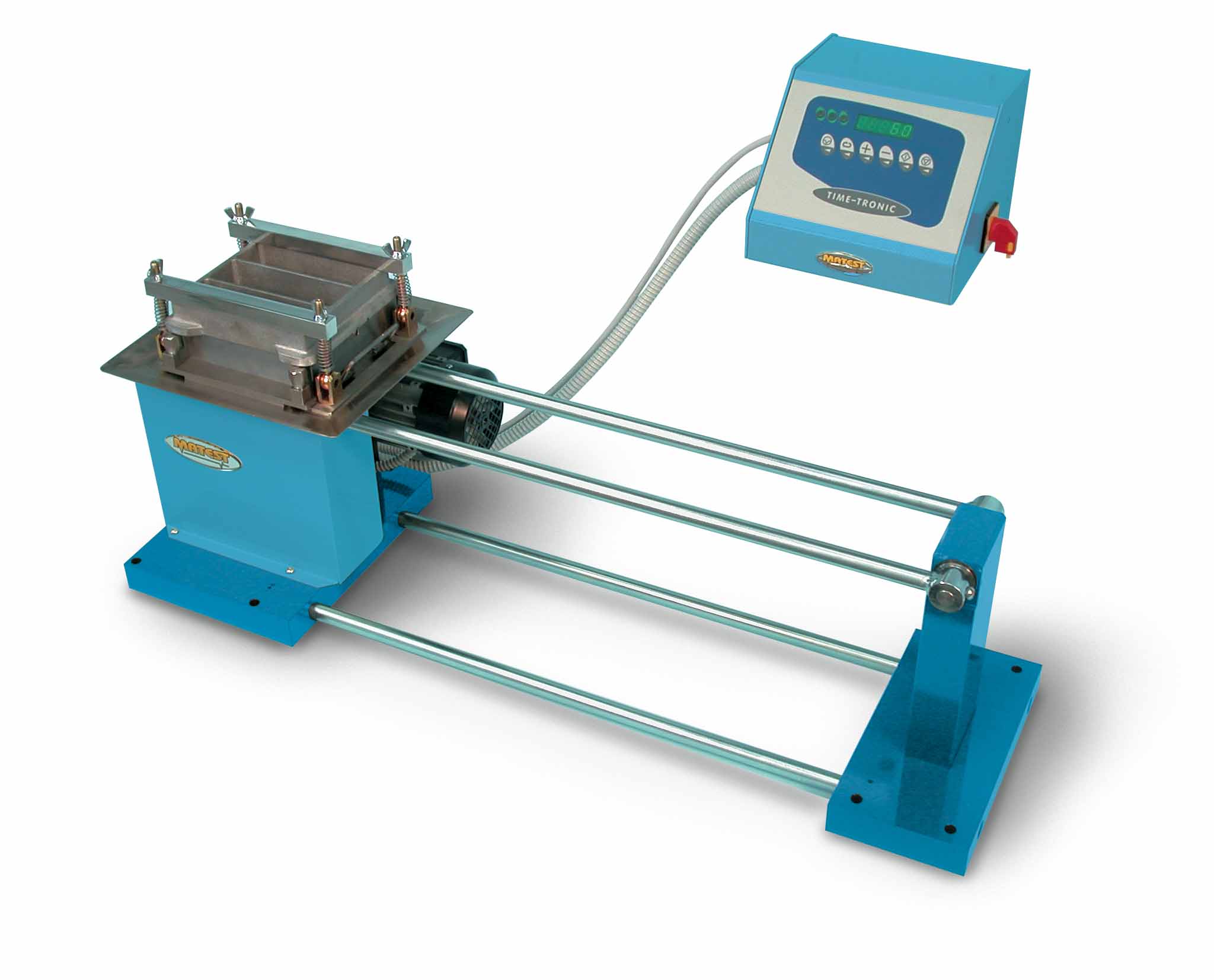

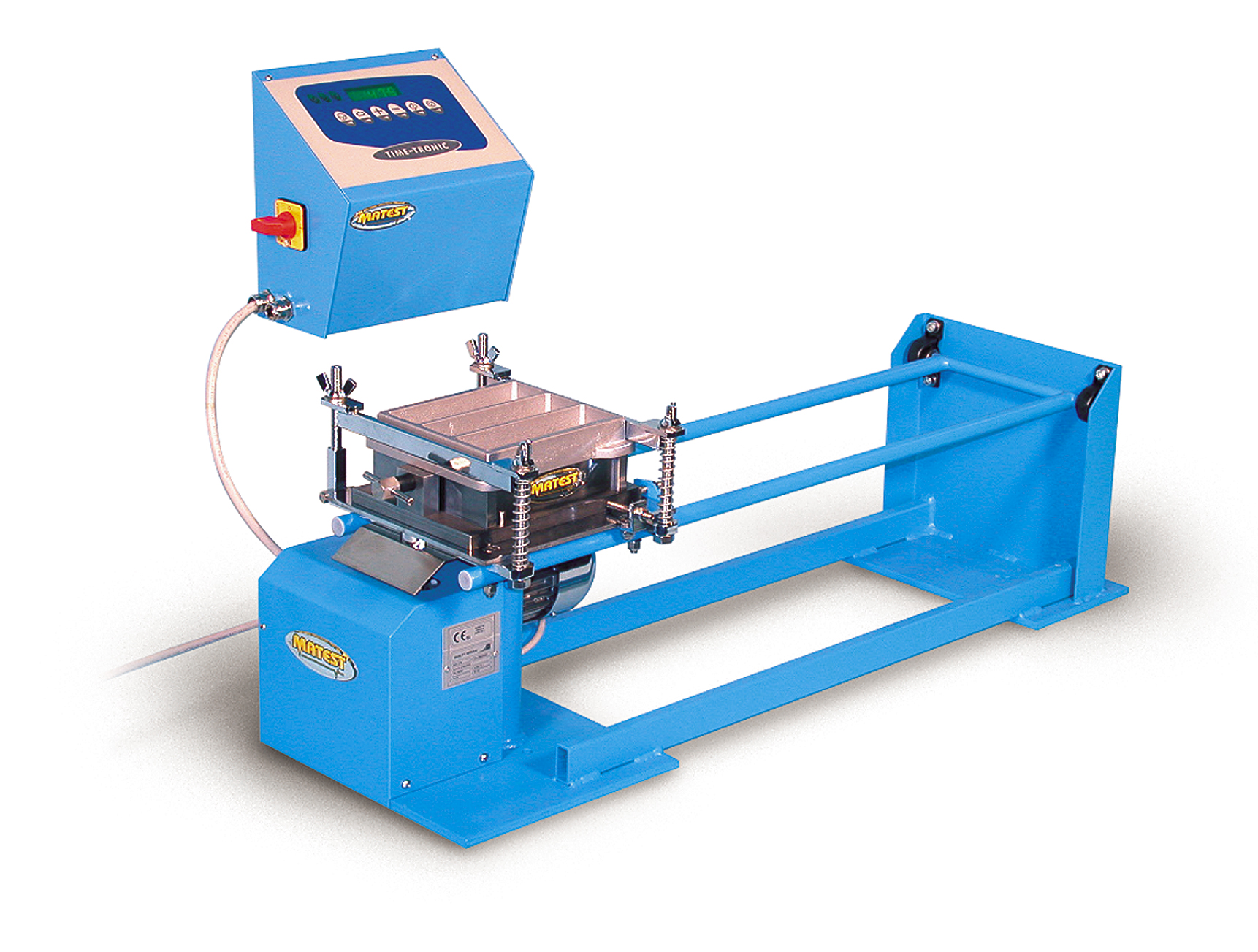

JOLTING APPARATUS
Used to compact cement mortar prisms 40x40x160 mm in the three gang mould, as requested by the above Specifications. The apparatus, consists of a table holding the mould, seated on a rotating cam driven at 60 revolutions per minute.
The jolting group is connected to the table by bayonet joints for quick checking of the weights. The drop height (15,0 mm) is adjustable to keep it correct also after intensive uses. The apparatus is supplied with separate control panel including main switch, automatic digital drop counter, start/stop push button.
Power supply: 230 V 1ph 50 Hz 500 W
Dimensions: 1000x380x420 mm
Weight: 65 Kg

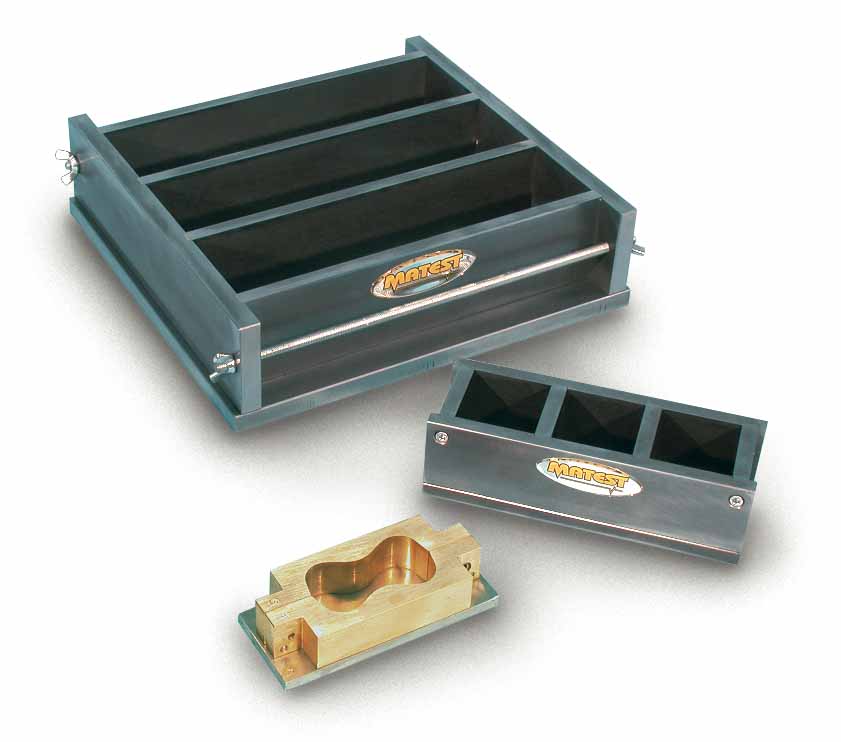

THREE GANG CUBE MOULD 50 mm
Made from steel, hardness 55 HRB, ti can be also used for soil and other materials.
Weight: 7 Kg
BRIQUETTE MOULD, ONE GANG
Accurately machined it conforms to the above Specifications and is easily collapsible. Complete with base.
Weight: 3 Kg

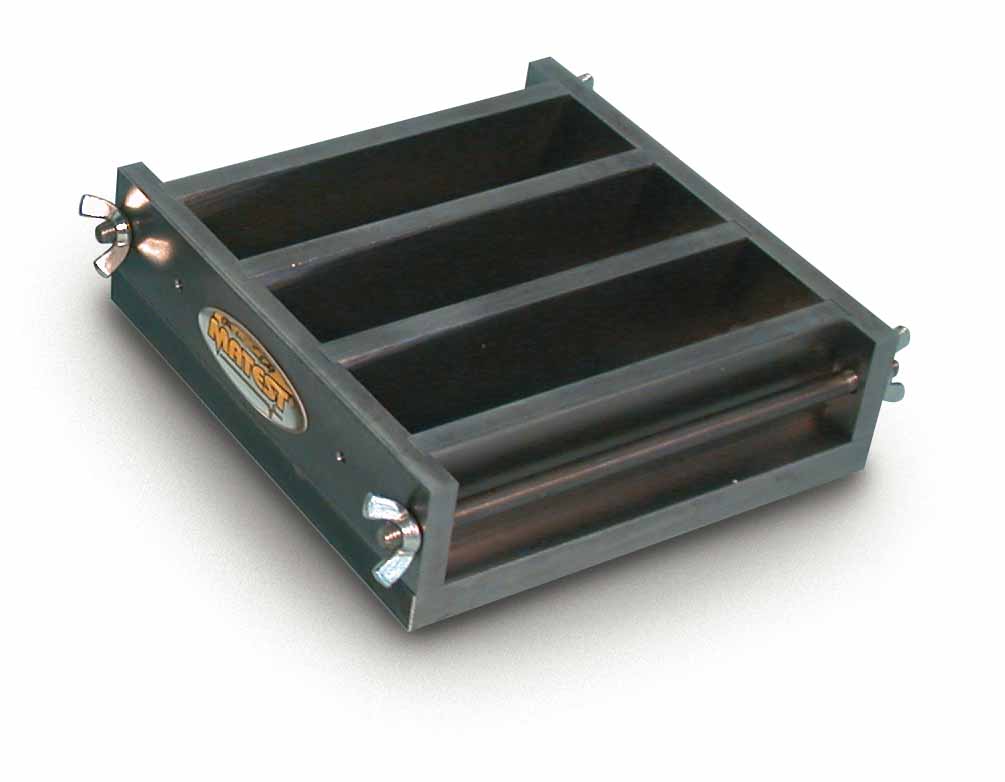

THREE GANG MOULD FOR 70x70x282,8 mm, NF
Made from steel, it conforms to the above mentioned Specification.
Weight: 17 Kg

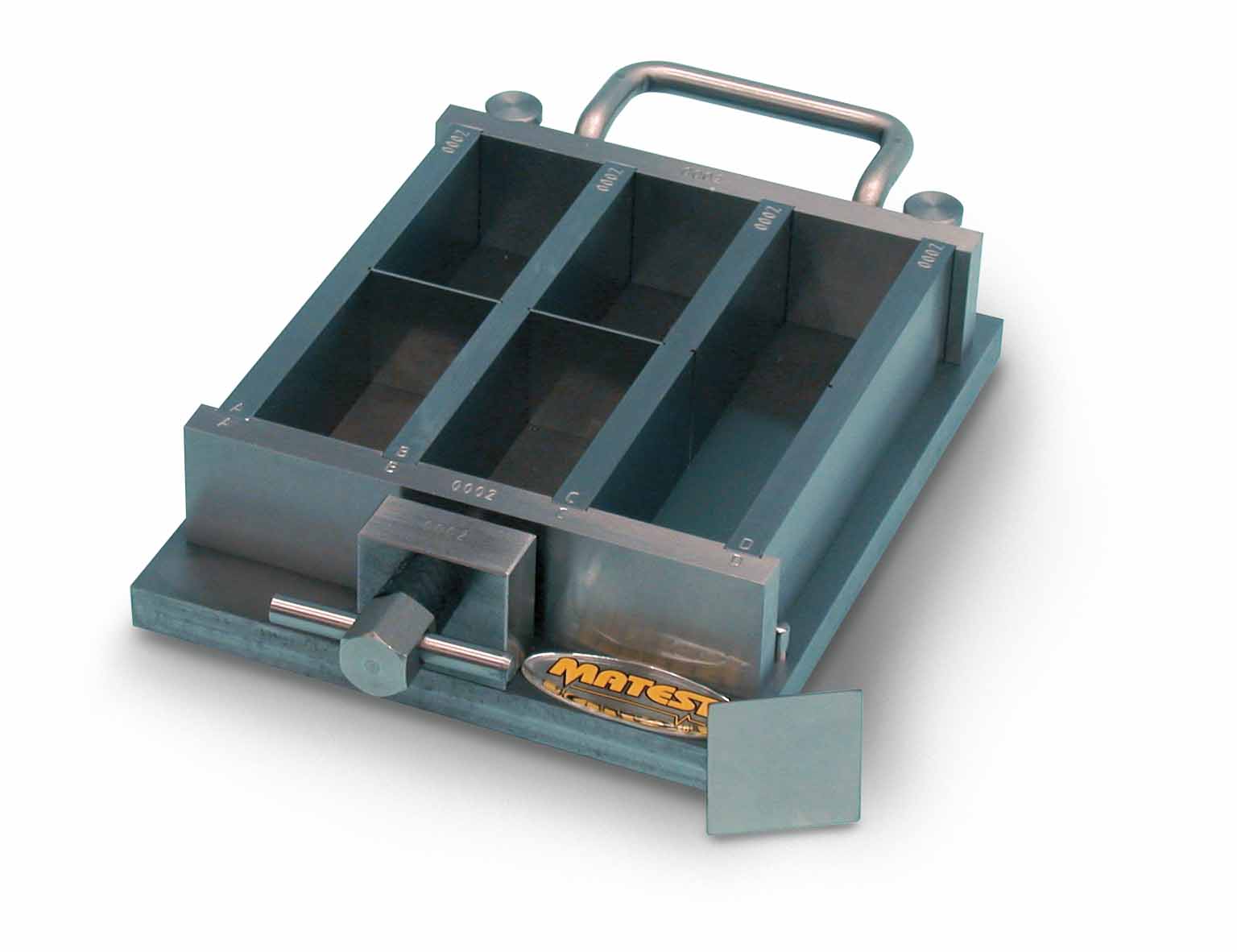

SIX GANG MOULD FOR 40,1x40x80 mm
Identical to mod. E102, but equipped with three stainless steel partitions, positioned in the middle of the gangs, to obtain six gangs having dimensions 40,1 x 40 x 80 mm approx.
Weight: 8600 g
THREE GANG MOULD FOR PRISMS 40x40x160 mm, NF, DIN, ASTM
Made from steel, hardness 55 HRB, it conforms to the above mentioned Specifications.
Weight: 8 Kg

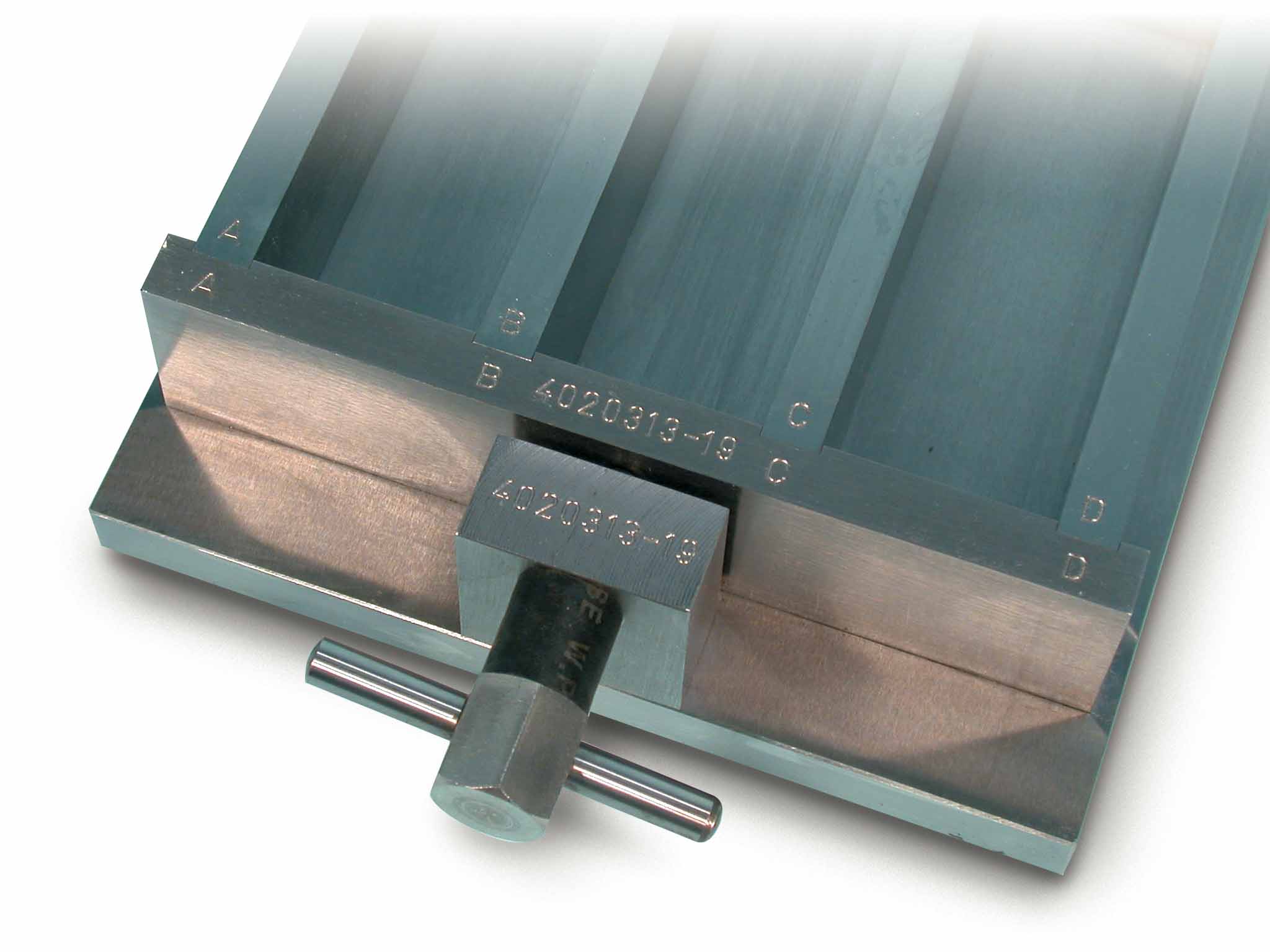

THREE GANG MOULD 40,1x40x160 mm PRISMS, EN VERIFIED
Identical in shape to mod. E102, but manufactured from heavy duty steel “with hardness of inside walls over HV 500” (EN196/1 Specifications recommend hardness HV 400). This high hardness value keeps the mould within the tolerances requested by Spec. for many tests, granting very long utilisation life. All parts are marked with an identification number for a correct assembling. Each mould is individually verified in the dimensional tolerances, hardness, squareness, flatness and roughness with instruments periodically certified by Namas Centre or equivalent. A part-number is engraved on each mould, and a Certificate of Conformity is supplied along with.
Weight: 8560 g.

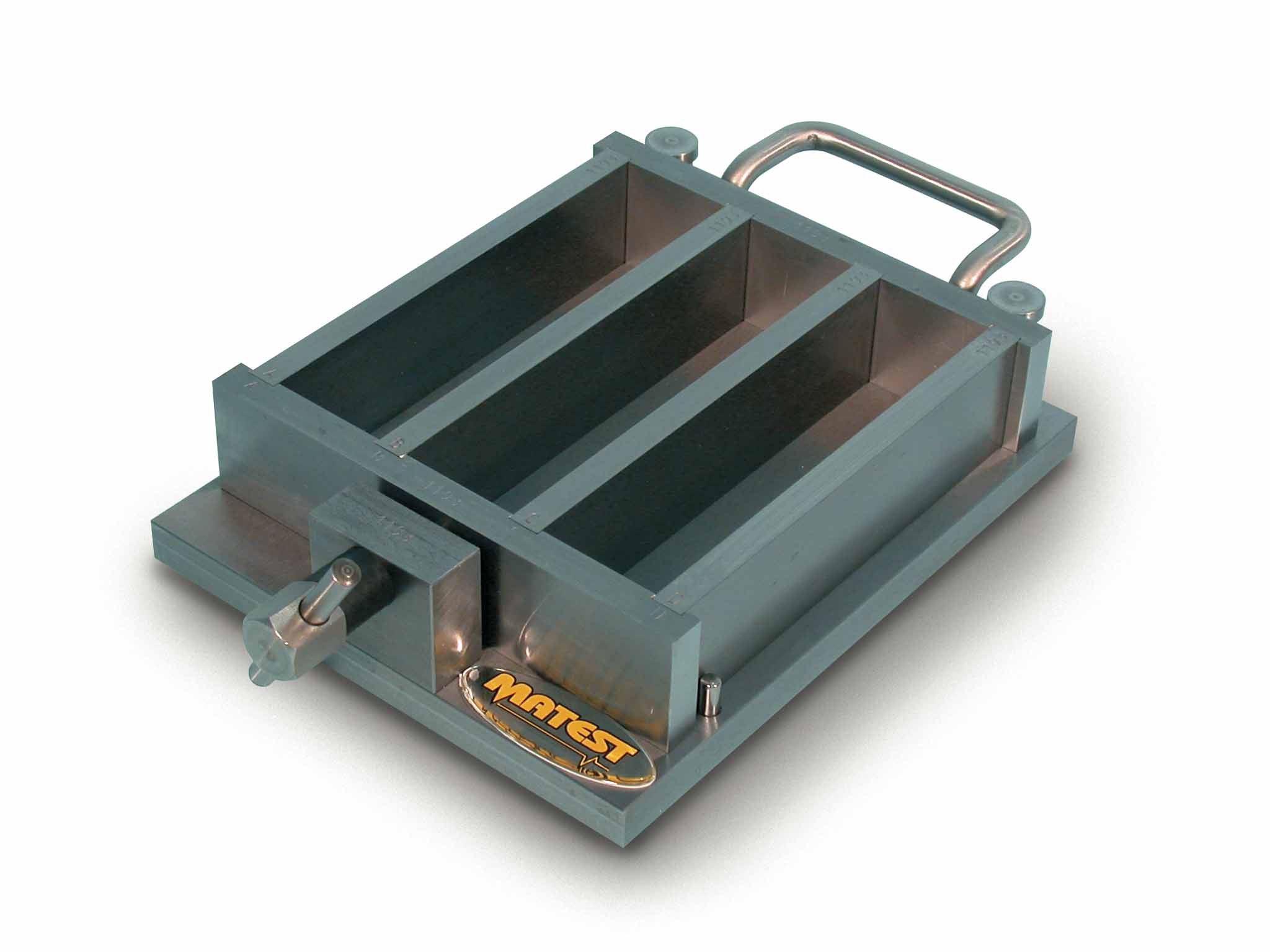

THREE GANG MOULD 40,1X40X160 mm, PRISMS
Manufactured from steel with “hardness of inside walls over HV 200”, it meets the dimensional tolerances to EN 196/1 Standard. All surfaces are grinded and all parts are marked with an identification number for a correct assembling. A part-number is engraved on each mould and a Certificate of Conformity is supplied along with.
Weight. 8560 g.
PULL-OFF 0-5 kN CAPACITY
Identical to mod. E142 but with load cell and digital display range 0-5 kN for more accurate measurements on low strength values.
