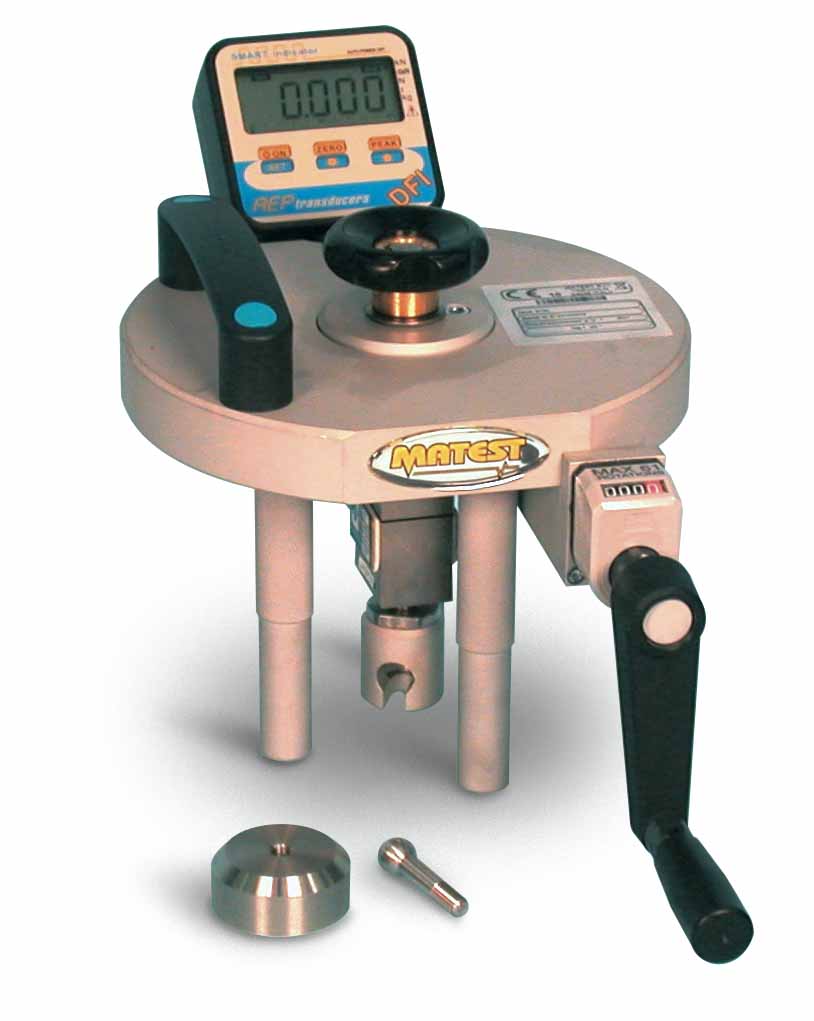

DIGITAL PULL-OFF STRENGTH TESTER 16 kN CAPACITY
This dynamometer measures the adhesive force and the tensile strength of two layers of materials (concrete, facing plasters, mortars, building plasters, lime etc.) and is particularly suitable for applications concerning testing repairs of any structure where the bond strength between two layers is an essential factor.
Compact, light and suitable for use in any location, this Pull-Off Tester is fitted with a load cell and high resolution large digital display unit; it is therefore suitable for measurements from low loads up to 16 kN, granting a wide working range and ideal for a large number of applications and materials. The direct tensile force is applied by rotating the hand wheel.
The three feet of the unit can be fixed in the “large” position (overall dimensions 176mm diameter) with very stable bearing, or in the “compact” position (overall dimensions 92,5mm diameter), to perform tests in narrow spaces, or for specimens close one to the other.
Specifications:
- Load capacity: 16 kN
- Resolution: 10 N
- Working range: 0,25 to 16 kN
- Accuracy and repeatability: better than +/- 1%
- Complete with traceable calibration certificate
- Battery operated
- Serial port for PC connection
- Hand wheel rounds: 60 with mechanical round/counter
- Graphic indication of the applied load rate
- Seat ball assuring axial/central load application
Supplied complete with carrying case, but WITHOUT accessories to perform the test, which have to be ordered separately.
To perform the test a common electric drill is required.
Dimensions: 410 x 210 xh 270 mm
Weight: 3,5 kg approx.
MORTAR MIXER WITH SAND DISPENSER
Basically similar to mod. E094, but complete with sand dispenser and safety door to CE Safety Directive.
Two speeds can be selected. Supplied complete with stainless steel bowl, but “without beater” which has to be ordered separately.
Dimensions: 340x460x500 mm
Weight: 44 Kg

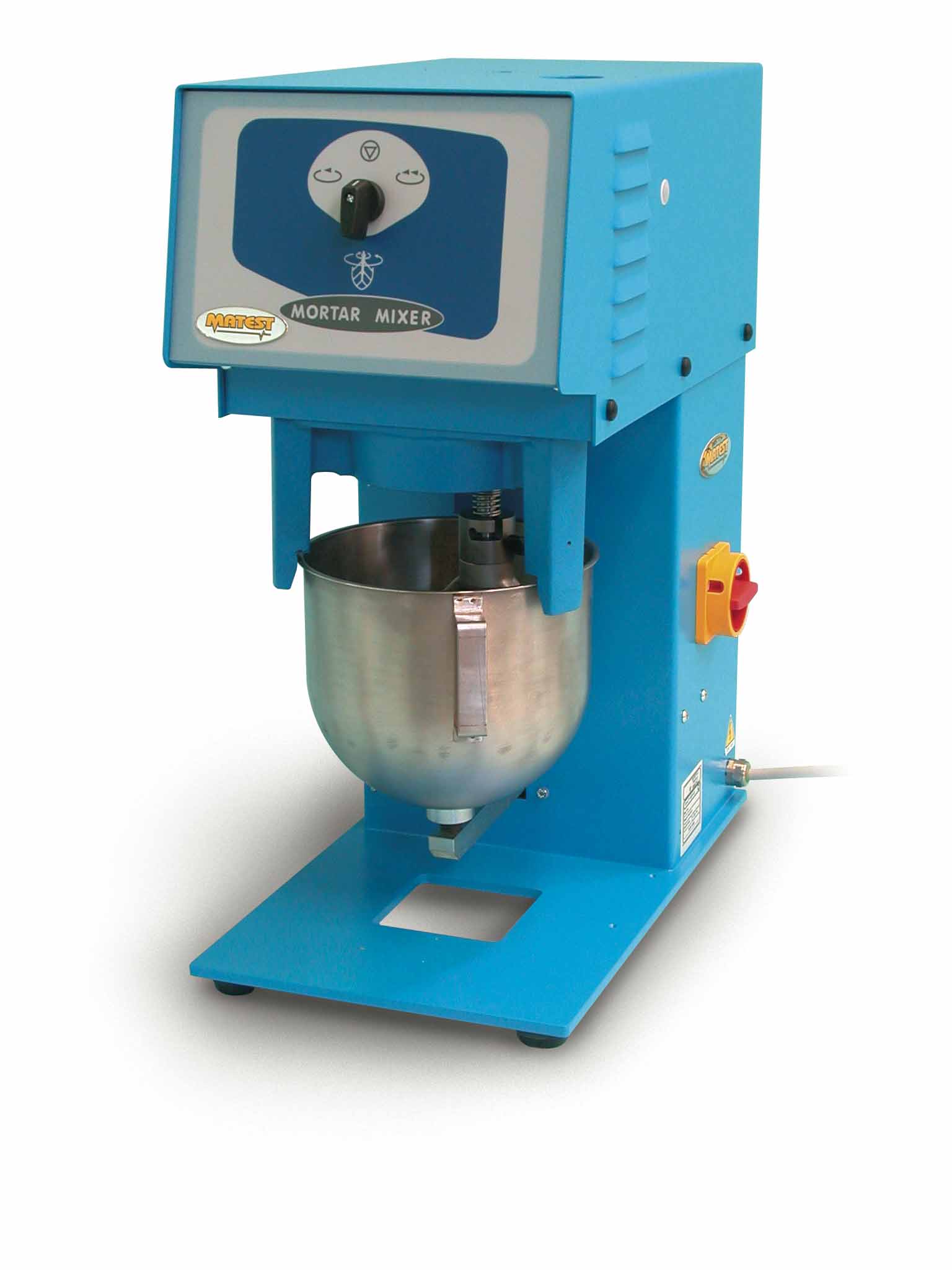

MORTAR MIXER WITHOUT SAND DISPENSER
Basically similar to mod. E093, but not equipped of automatic program, sand dispenser and safety door.
Two speeds can be selected. Supplied complete with stainless steel bowl, but “without beater” which has to be ordered separately.
This mixer can be supplied only to extra CE markets
Dimensions: 340x460x500 mm
Weight: 40 Kg

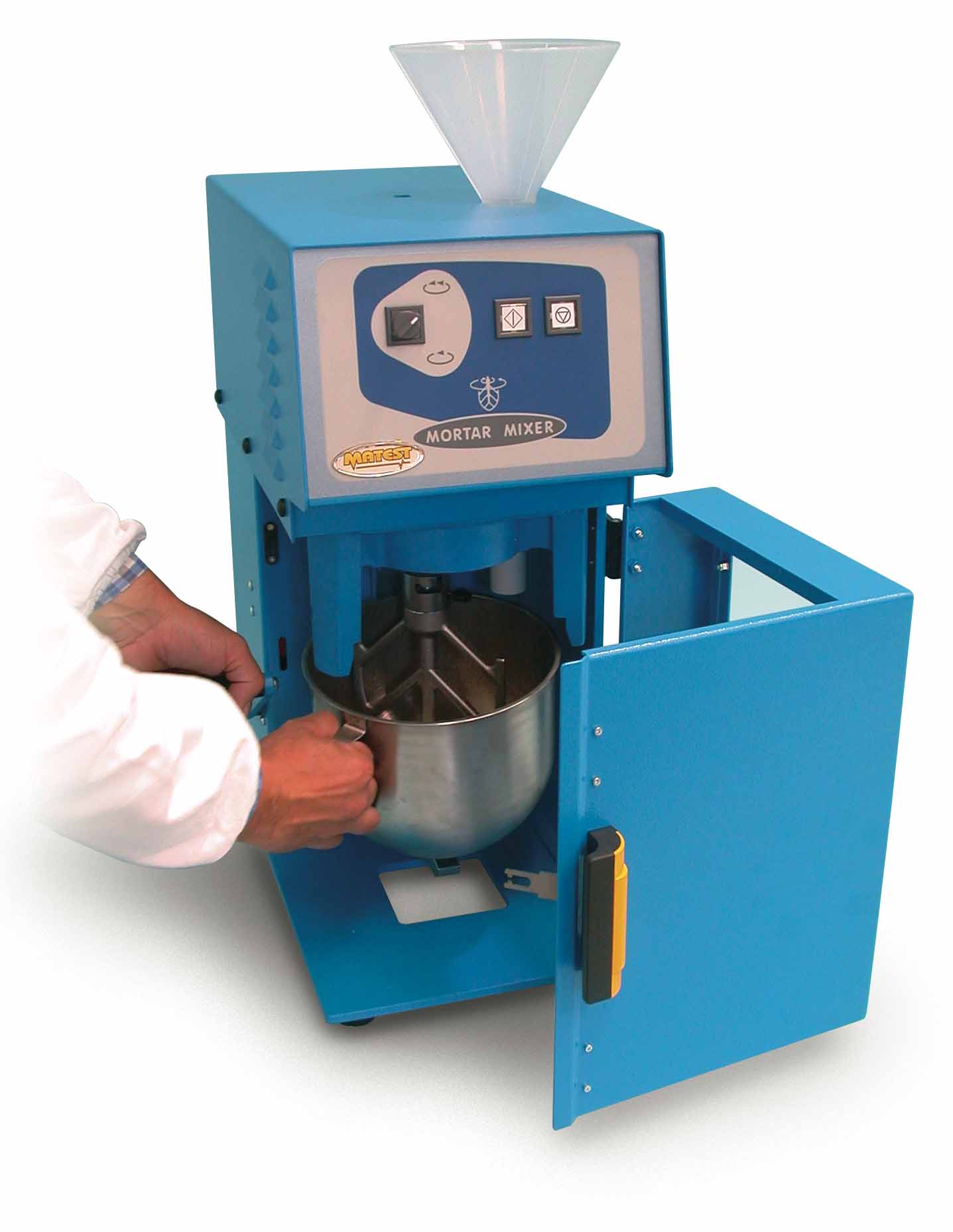

, AUTOMATIC MORTAR MIXER
This very robust mixer is expressly designed for the efficient mixing of cement pastes and mortar, with threeautomatic sequences of mixing cycle, in compliance with: EN 196-1, EN 196-3:2005, EN 480-1 Specifications.
Bowl capacity is 4,7 litres Two speeds can be selected:
140 or 285 rpm for the revolving action
62 or 125 rpm for the planetary action
It is possible to select the manual working, or one of the two automatic programs. By operating automatically on changes of speed, stops and mixing sequences, outlined by acoustic signal, the unit performs the mixing cycle. The unit is equipped of an automatic sand dispenser which fills the sand into the mixing bowl for a period of 30 seconds (EN 196-1 program). Complete with safety door conforming to CE Safety Directive; if opened it automatically stops the machine.
Supplied complete with stainless steel bowl, but “without beater” which has to be ordered separately (see mod. E095-03 or E095-05).
Power supply: 230 V 1ph 50 Hz
Dimensions: 340x460x700 mm
Weight: 45 Kg

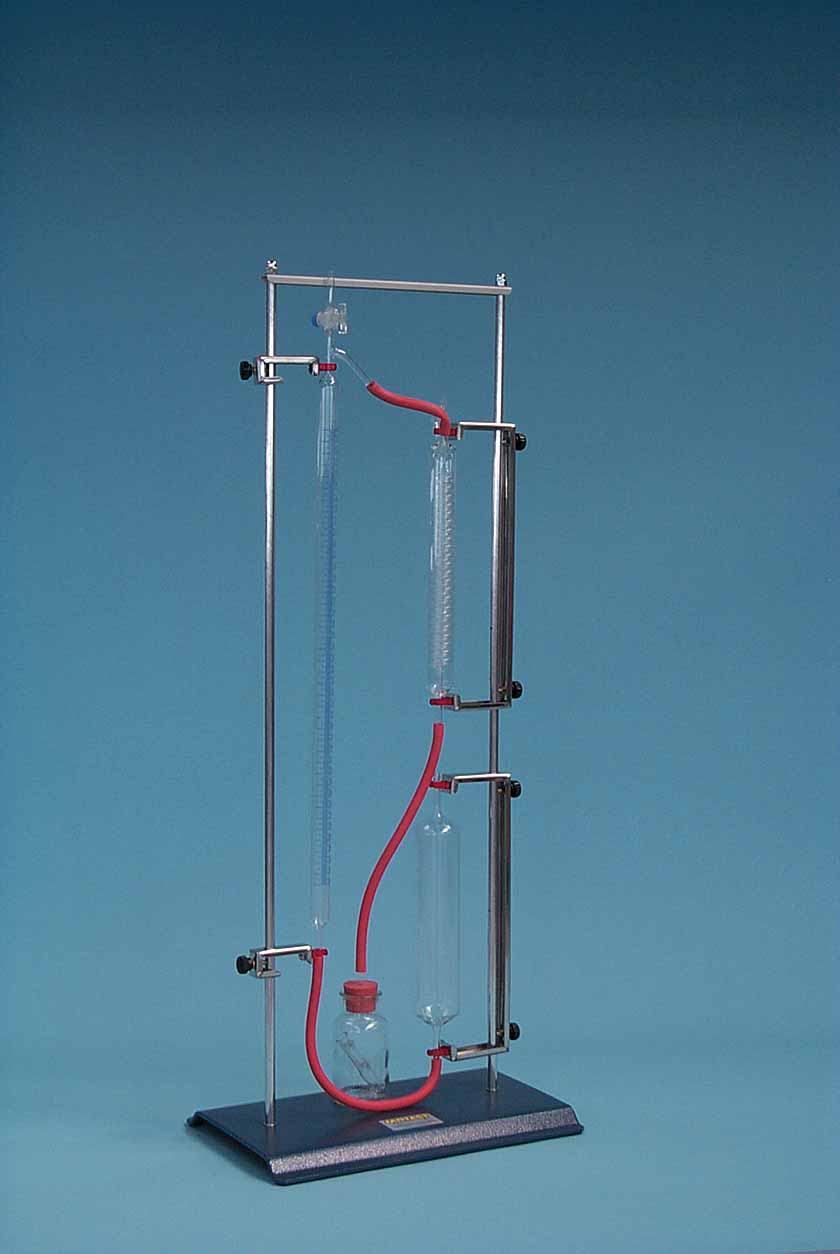

CALCIMETER DIETRICH-FRUEHLING
It mainly consists of a glass container in which the reaction between the calcium carbonate present in the product and a solution of hydrocloridric acid takes place.
The gased product is collected and measured by a device connected to the container.
As the volume of the produced gas (Co2) is in relation to the CaCo2 amount contained in the material, it is possible to calculate the percentage of CaCo3
Dimensions: 400x200x1100 mm.
Weight: 13 Kg

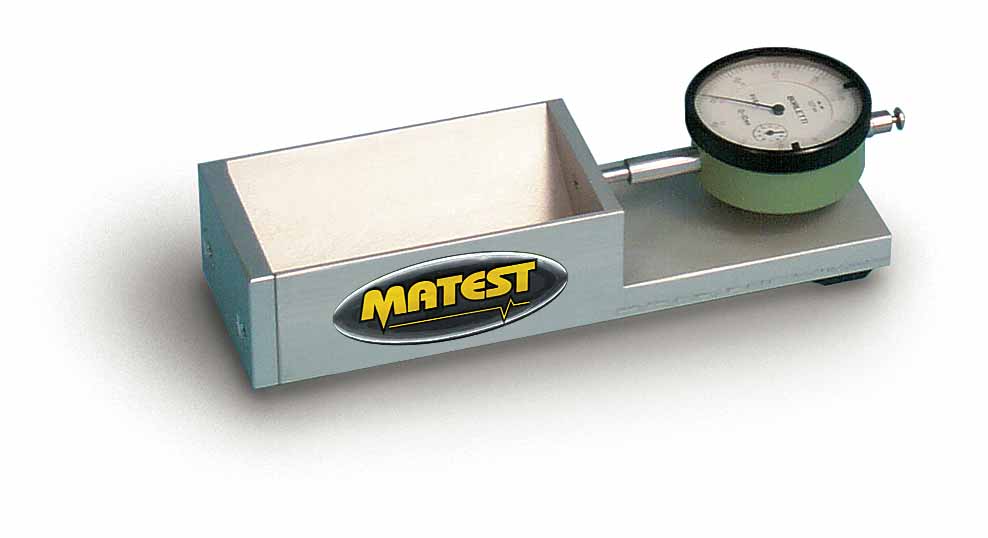

PLASTER EXTENSOMETER
Utilized to measure the linear expansion of a paste of standard consistence. The extensometer comprises an horizontal cradle 100 mm long x 60 mm wide x 25 mm deep closed at one end and open to the other. The open end is in contact with a dial gauge spindle, so that the lateral expansion of the specimen is measured. The dial gauge has 10 mm travel and 0,01 mm. graduation.
Dimensions: 250x80x80 mm
Weight: 3 Kg
MORTAR BAR CONTAINER
This test method covers the determination of the potential alkali reactivity of cement-aggregate combinations (mortar bar method).
The device is composd by an acrilic cylinder container with a stainless steel rack.
Dimensions: 170mm dia. x 450mm
Weight: 3 kg approx.

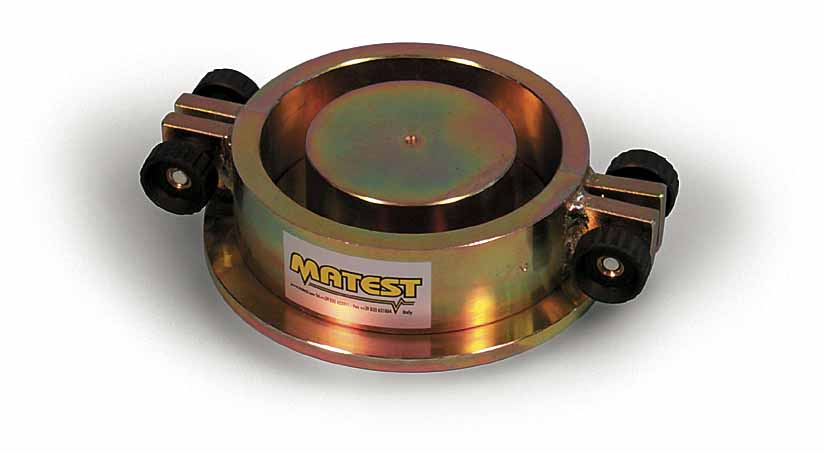

CRAKING TEST MOULD
Used to produce ring-shaped specimens designed for cracking tests on hydraulic binders. This test consists of measuring the formation time of a crack on the test specimen.
Weight: 8 Kg

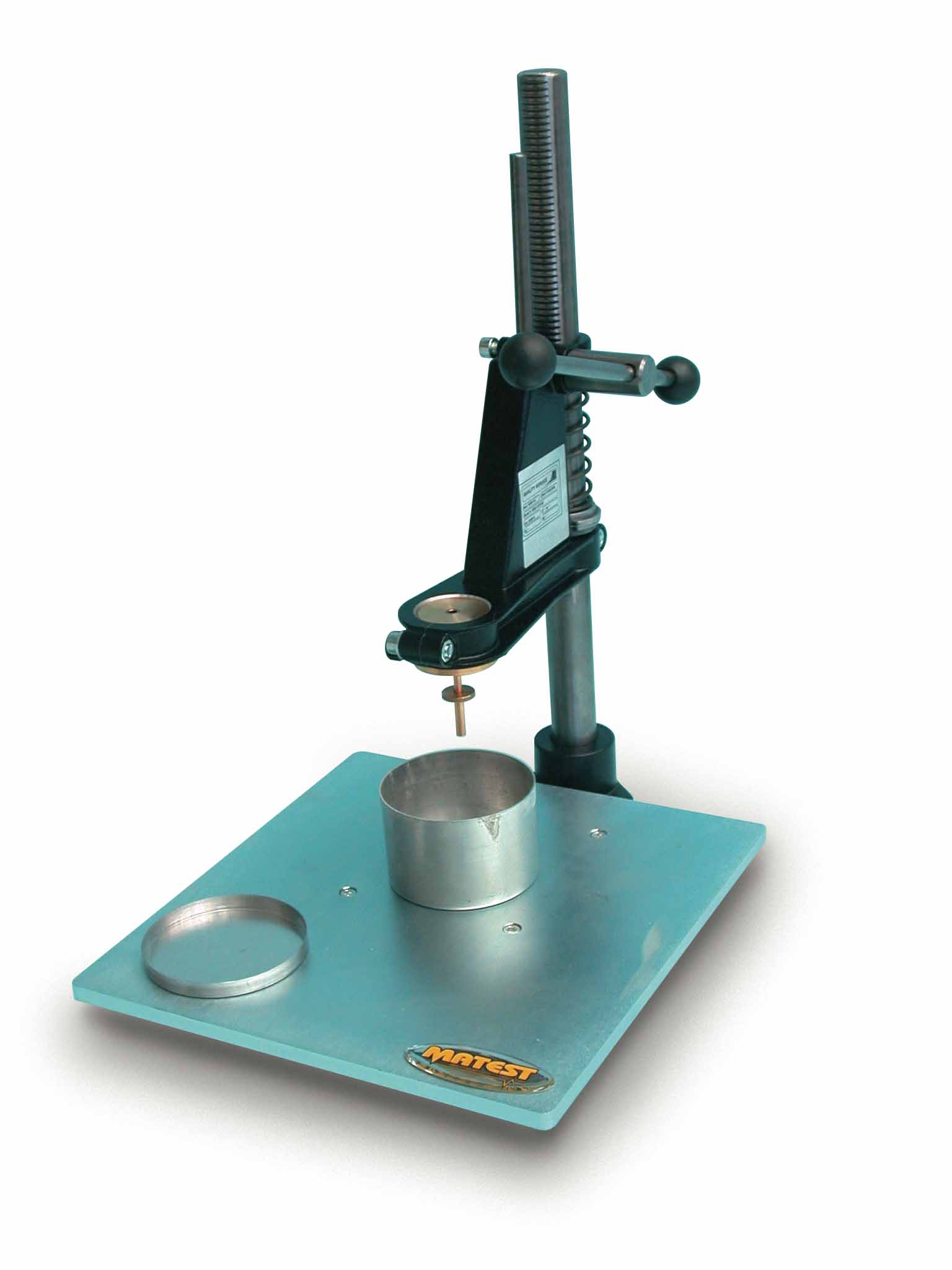

LEVER SUPPORT
Lever Support (drill-holder type), complete with washer and penetration rod brass made, clamp and locking support.
Used for the determination of stiffening time on products and systems for the protection and repair of concrete structures.
Complete with container.
Dimensions: 380 x 300 x h500 mm
Weight: 12 kg approx.

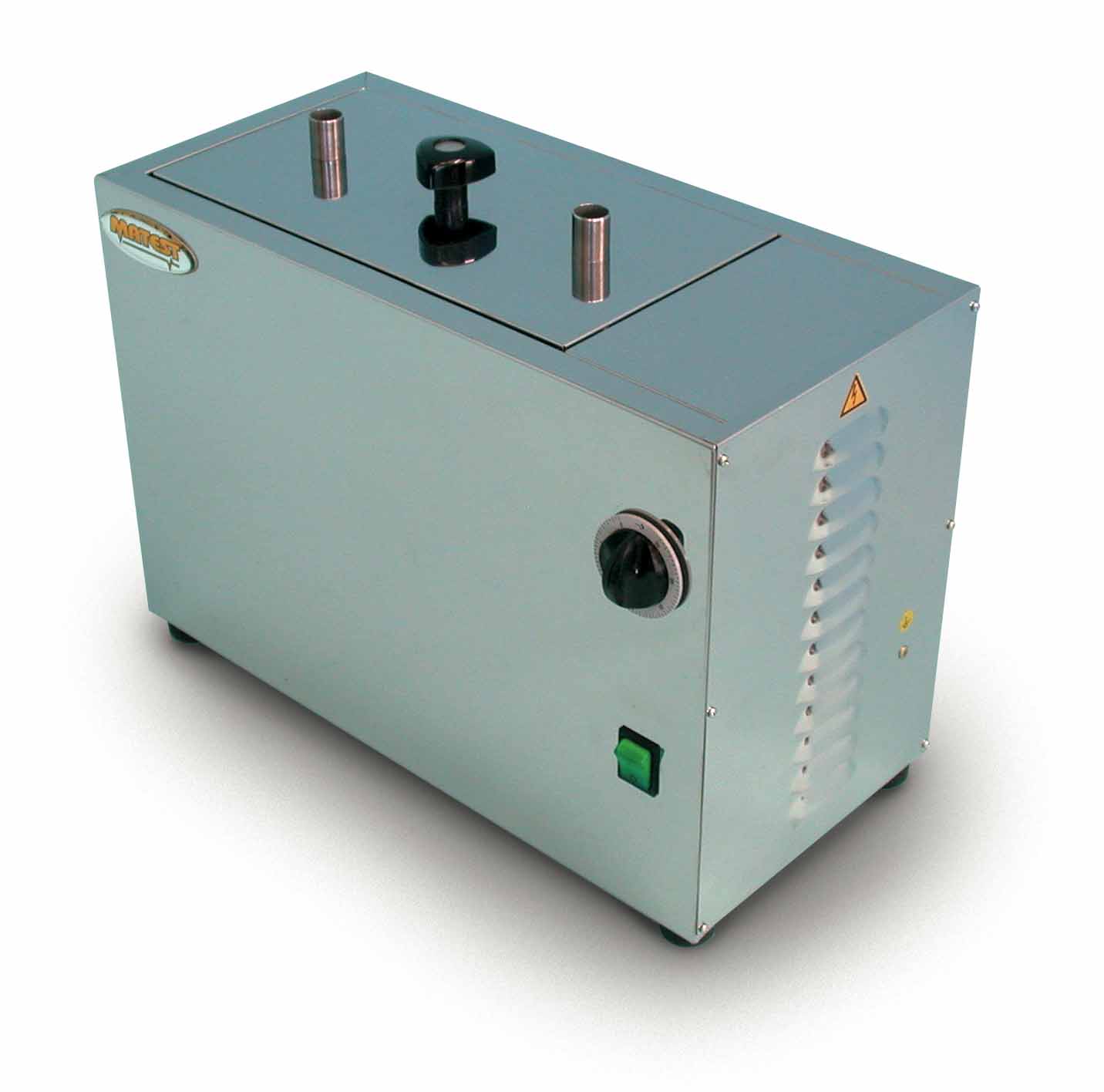

STEAM BATH
This bath is used for the determination of the soundness of building limes subjected to steam action at atmospheric pressure for 180 minutes time.
The steam bath, all stainless steel made, holds up to 12 Le Chatelier moulds, approx. 50 mm over the water level. Two heating elements of 1200W and 200W reach the water boiling point in 30 minutes; now a timer disconnects the 1200W element, and the water temperature is maintained by the second element, as requested by the Standard. The cover has a device avoiding the condensed water to drop on the specimens.
Power supply: 230V 1ph 50/60Hz 1400W
External dimensions: 455x215xh350 mm
Inner dimensions: 300x150xh260 mm
Weight: 9 kg approx.

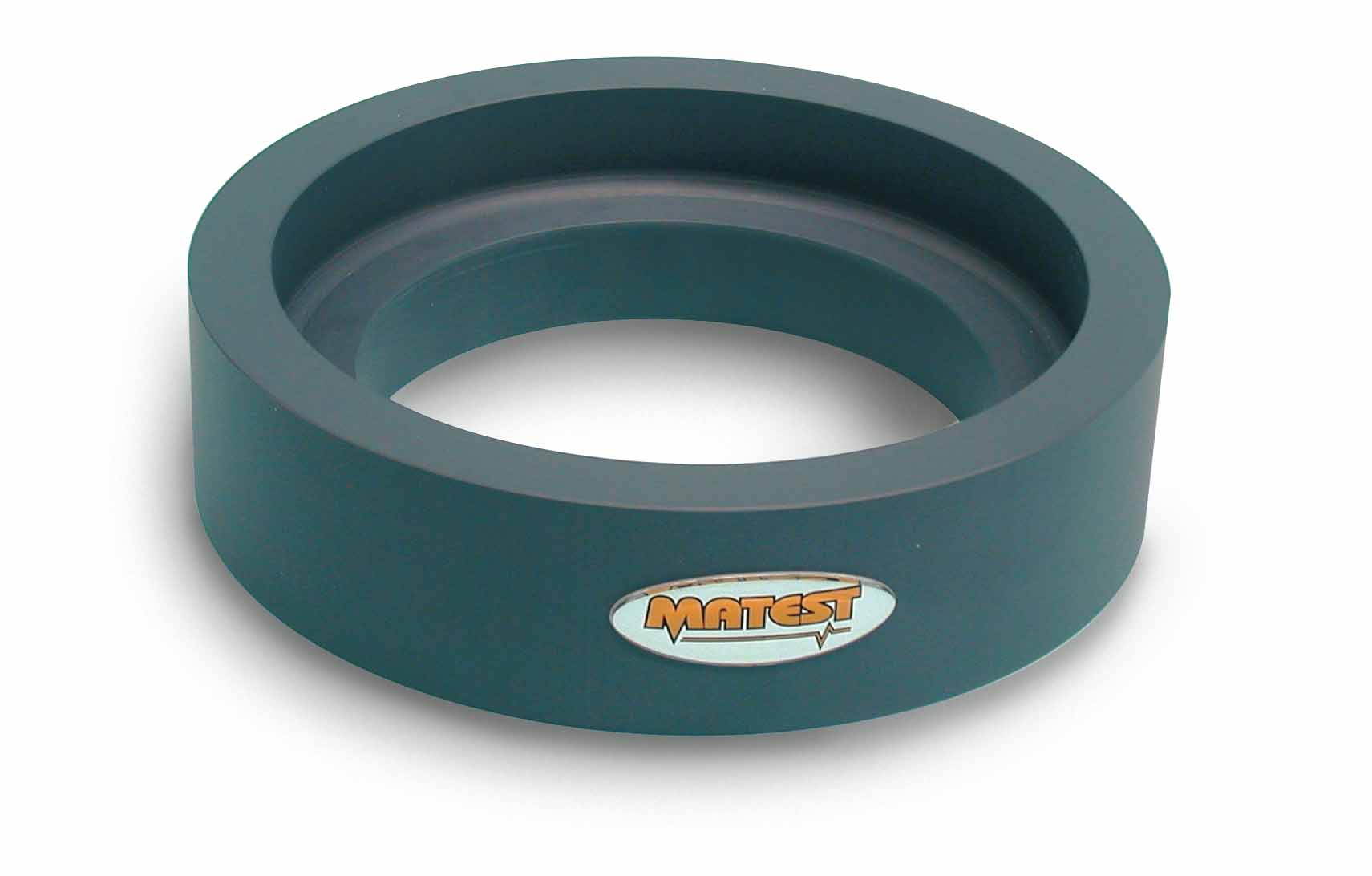

CIRCULAR TEST CONTAINER
Used to determine the water vapour permeability of hardened rendering and plastering mortars.
Manufactured from PVC material, resistant to corrosion, it has an opening of approx. 0,2 sq.mt., on which the test sample is sealed
Dimensions: dia. 240 mm by 60 mm
Weight: 1 kg approx.

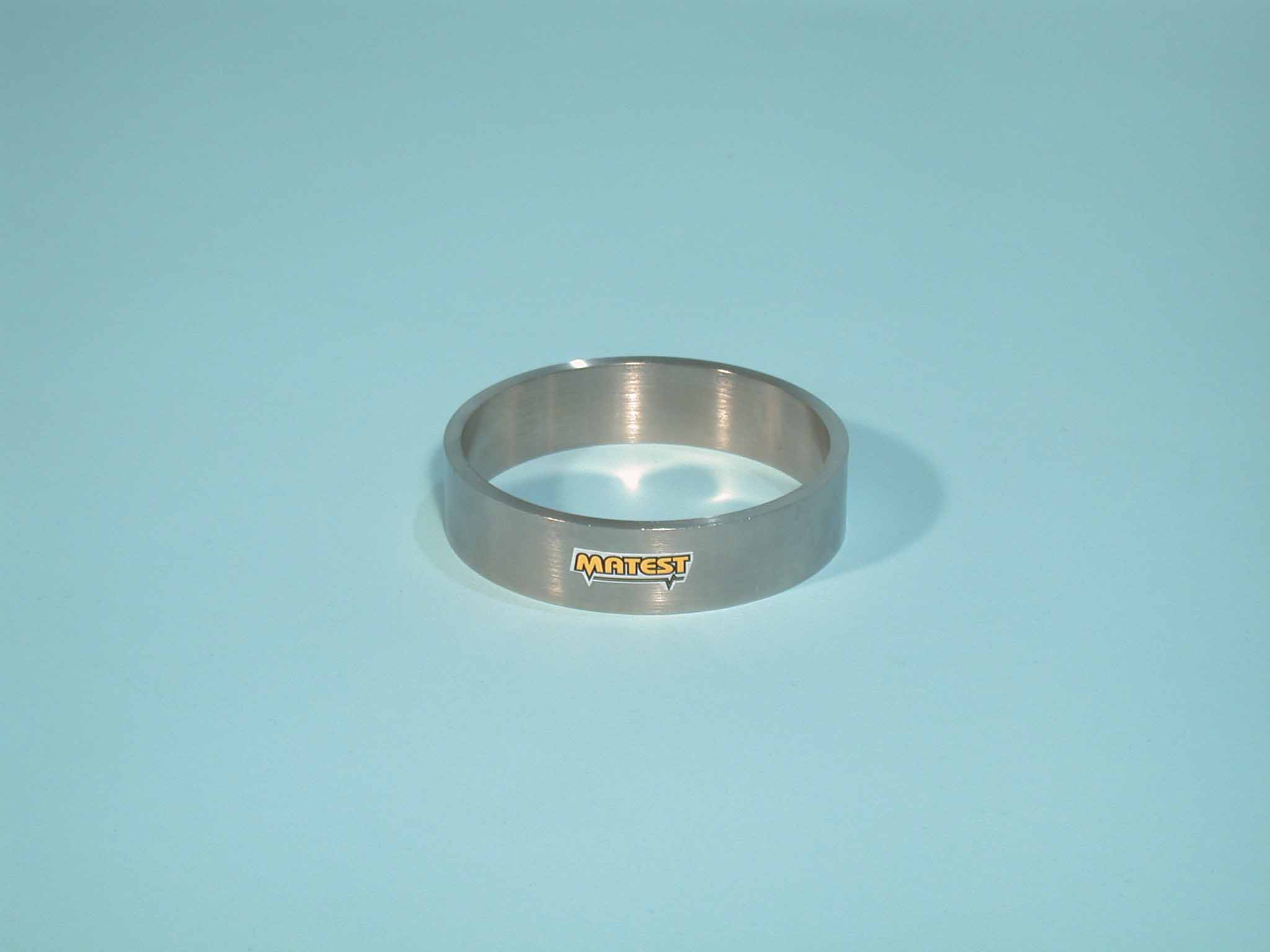

MOULD FOR WATER RETENTION
Brass chromed mould having dia. 100 mm by 25 mm deep, it is used for determining the water retention of masonry cements.
Weight: 300 g approx

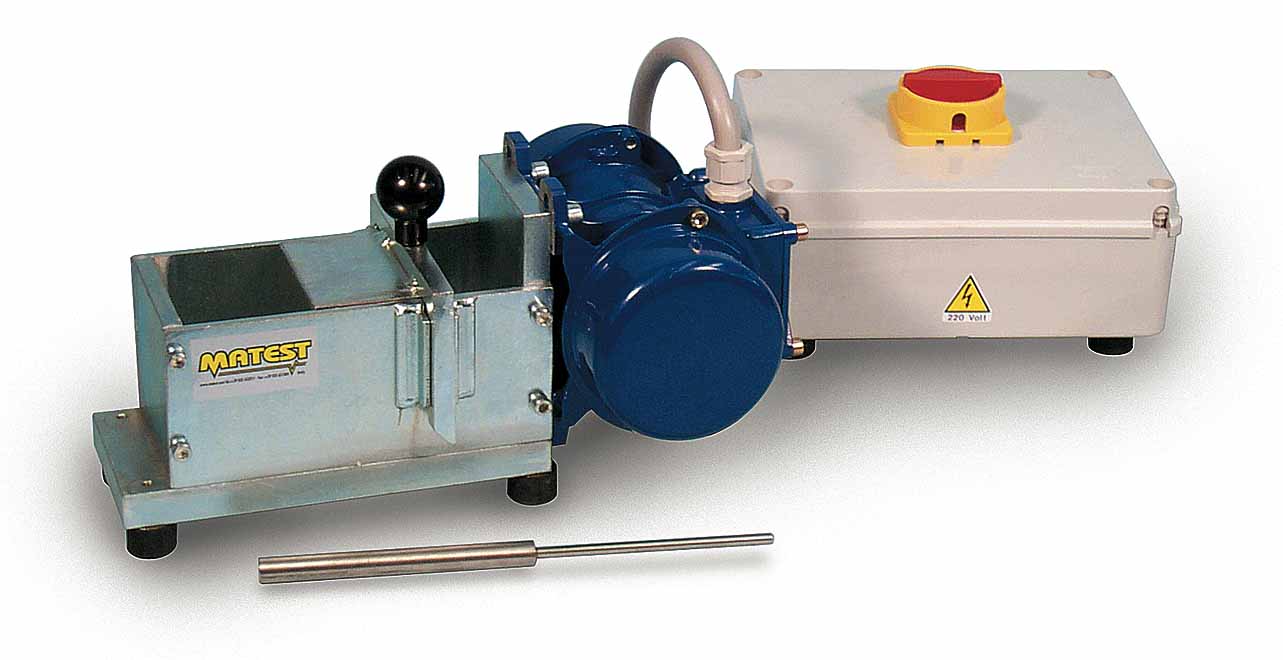

MORTAR WORKABILITY APPARATUS
Designed to test concrete mortar for dynamic workability and also to ensure optimum proportioning of mortar constituents (sand, water, cement, as well as cement/sand and water/cement ratios) compatible with given application. Suitable also for checking possible improvement when admixing a plastifier, or for comparing two mortar types. The unit consists of a prismatic receiver divided into two unequal volumes by a removable partition, and by an electric vibrator. The fresh mortar is poured in the large volume place, the separating partition is removed and the vibrator stats automatically. As a result of vibrations, mortar flows from the large volume to the small one, in a time which is a function of the workability of the mortar.
Power supply: 230V 1ph 50 Hz 110 W
Dimensions: 400x200x200 mm
Weight: 18 Kg

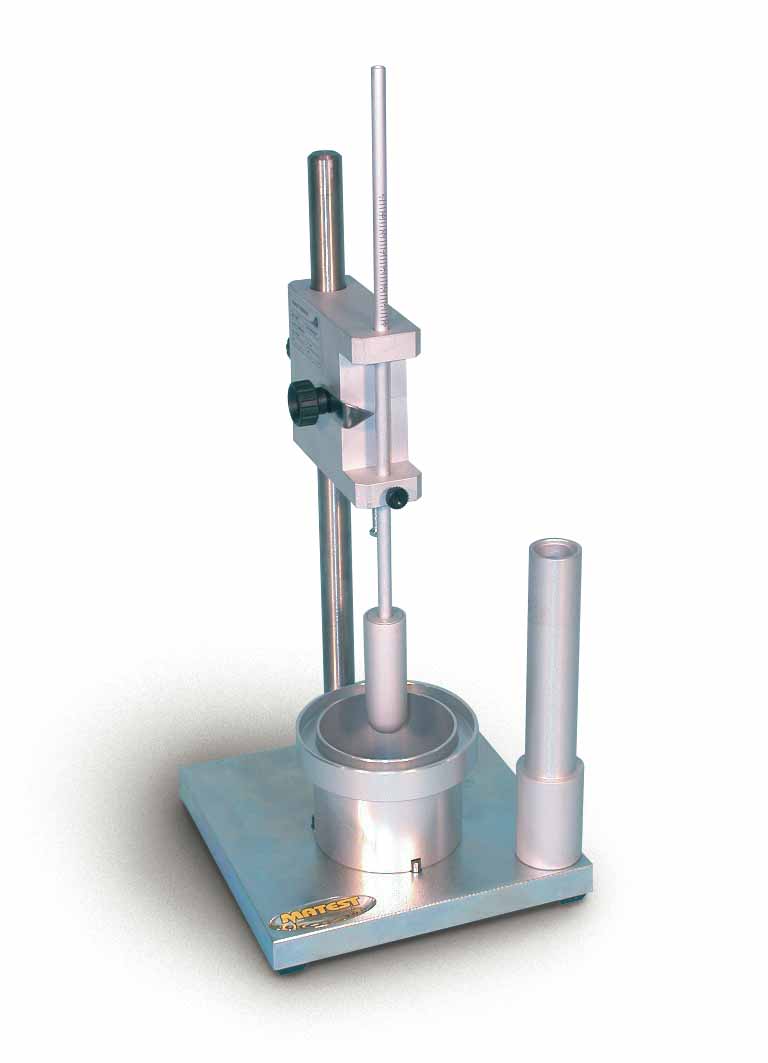

PLUNGER PENETRATION APPARATUS
Used to determine the consistency of fresh mortar, lime and masonry cement.
The base is foreseen of a device to locate the test cup. The height of the drop can be accurately adjusted to 100 mm.
Supplied complete with test cup and tamper, both anodized aluminium made
Dimensions: 200x200x700 mm
Weight: 8 Kg

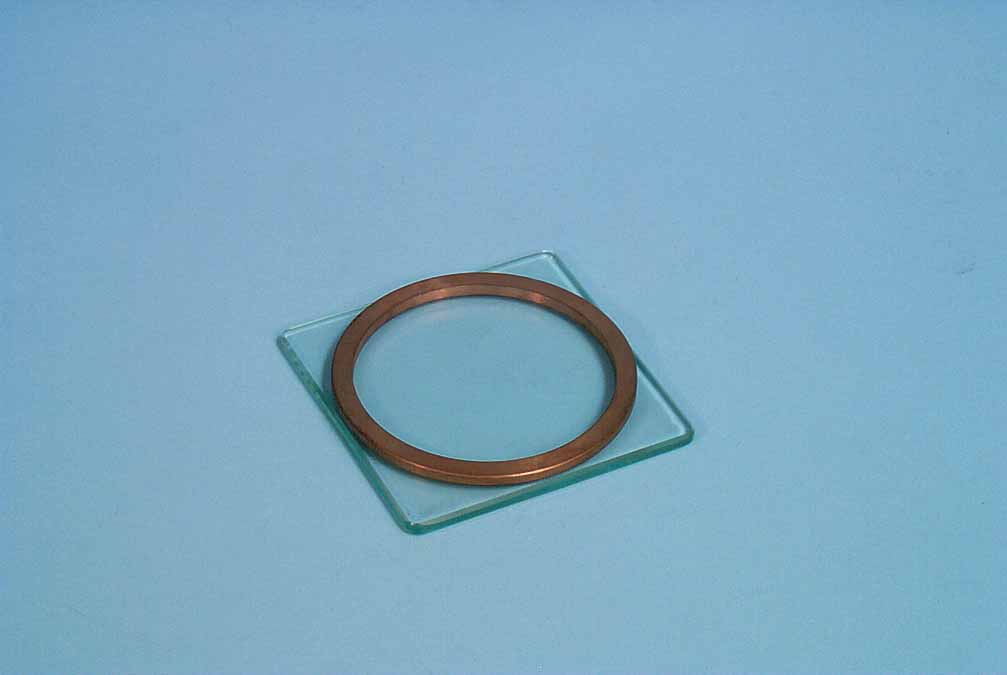

PAT TEST
Utilized for the determination of the soundness of hydrated lime, gypsum and building plasters. Consisting of a brass ring mould, 100 mm. diameter by 5 mm deep.
The mould has an inside taper of 5°.
Supplied complete with glass base plate. To carry out one test, three moulds are required.
