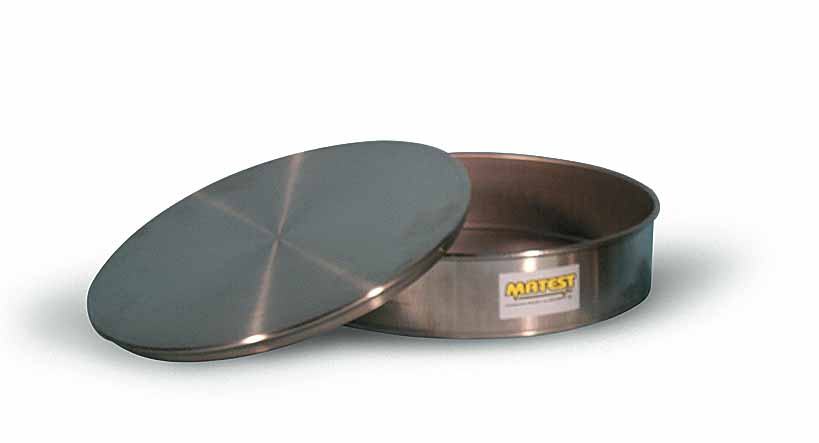

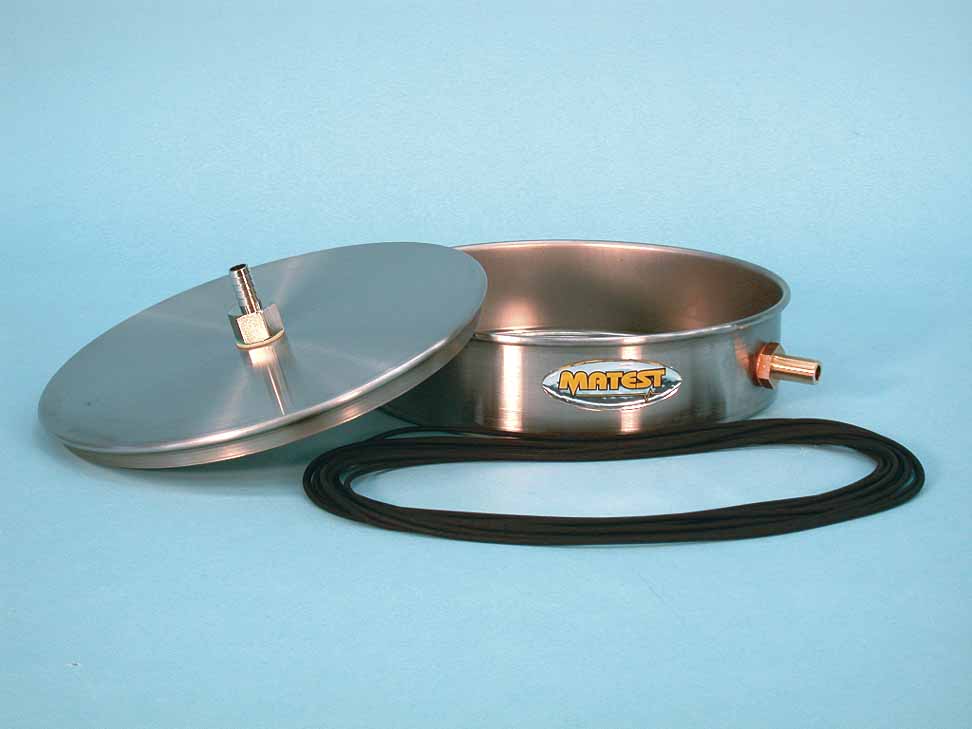

PAN + LID DIA. 200 mm FOR WET TESTS
The water enters through the spray nozzle mounted on top of the lid and comes out with fines from the pan.
Supplied complete with two watertight seals.

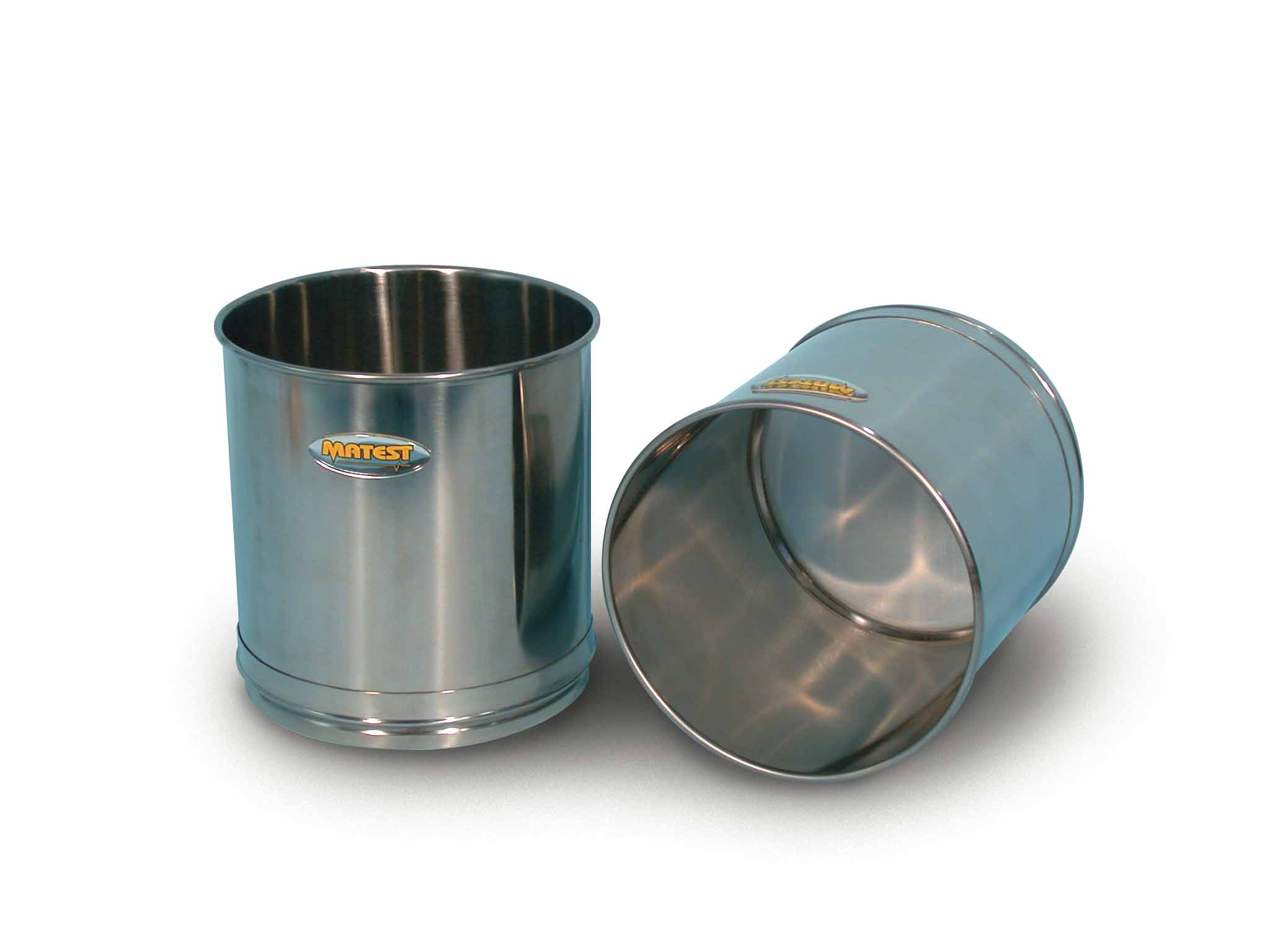

WET WASHING SIEVE DIA. 200 X H200 mm, CLOTH OPENING 0,074 mm
Used for wet testing of fine granuled materials.
Frame and woven wire cloth are stainless steel made.
Frame dimensions: Dia. 200 mm by 200 mm height.
Cloth opening 0,074 mm.

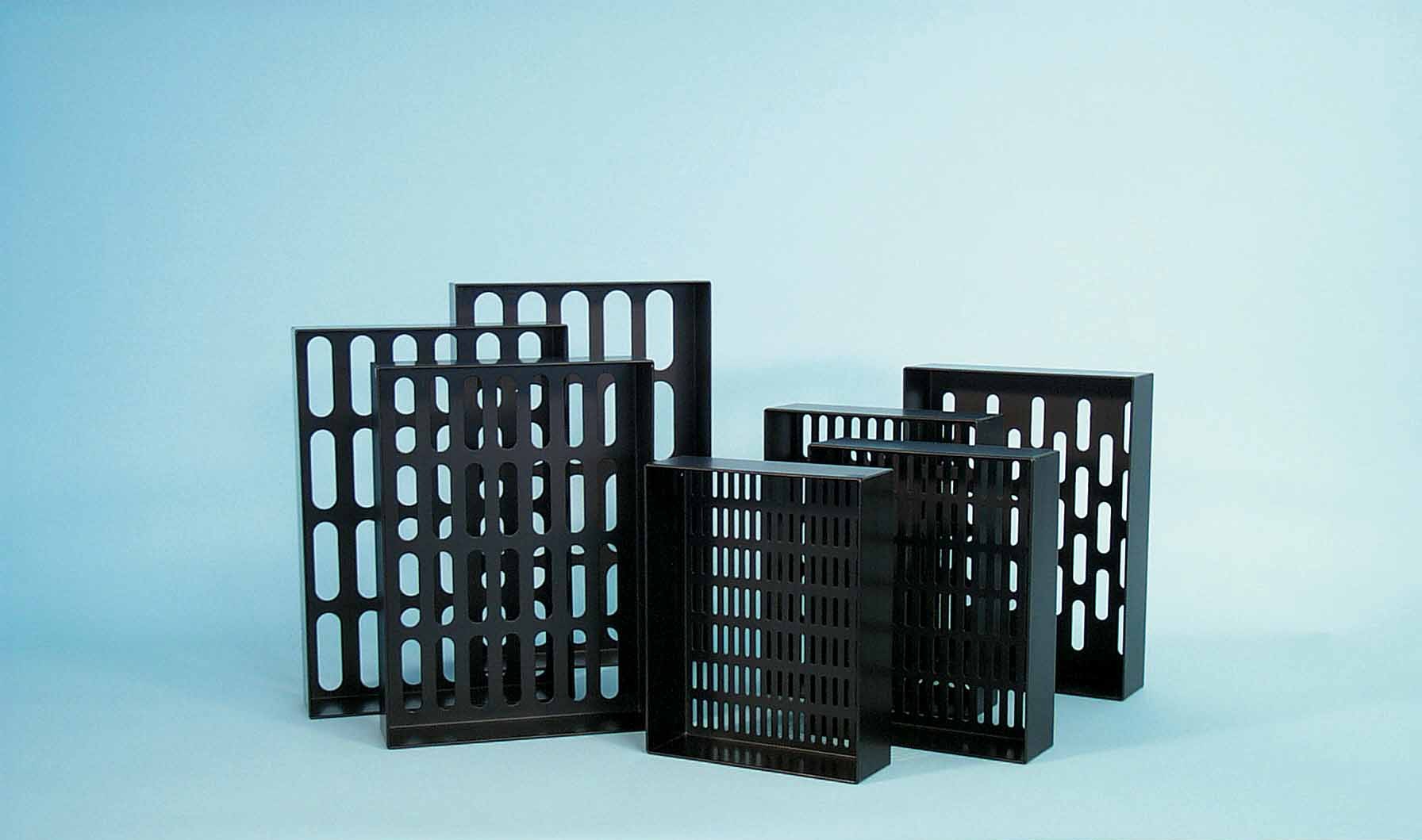

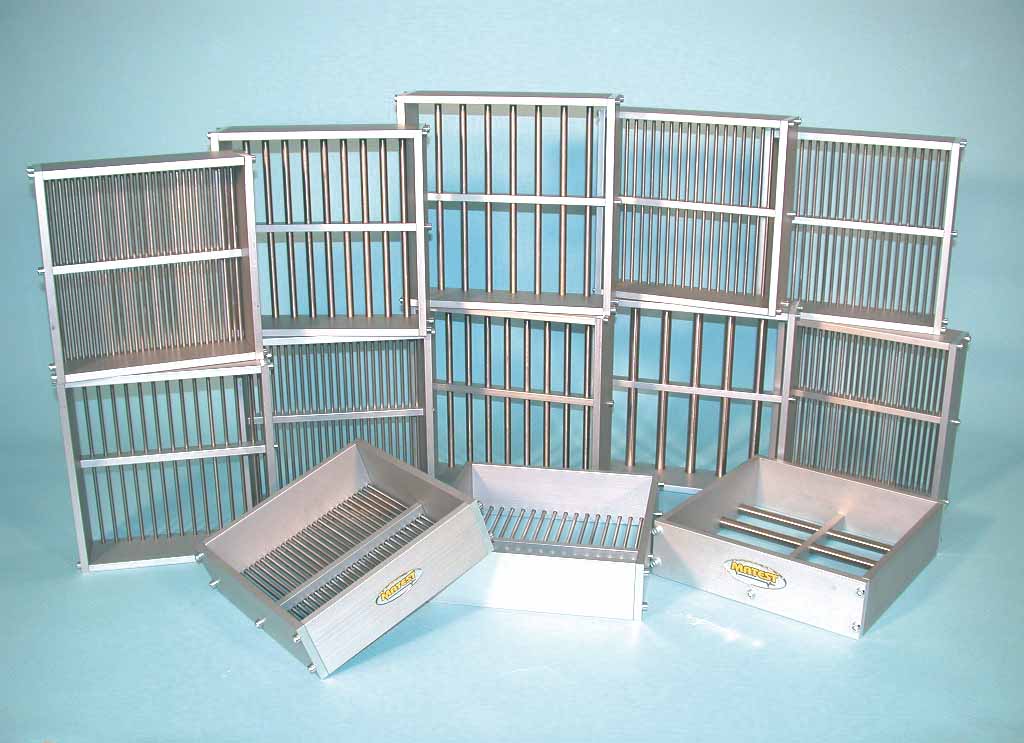

FLAKINESS SIEVE - OPENING
Used to determine if aggregate is flaky; i.e. if thickness is less than 0.6 of nominal size. Manufactured from heavy steel sheet, they have dimensions as specified by Standards.
Slot width mm: 4,9
Slot length mm: 30
MOISTURE BALANCE 160g x 0,001/0,01g
Moisture determination balance 160 g. capacity x 0,001/0,01g sensitivity with tare up to 10 g. Samples are dried by a infrared lamp with adjustable heat control.
A built-in-timer 0-61 min. switches off the heater at the end of the dr ying cycle which is signaled by a bell.
Moisture loss percentage and residual mass are read directly from the lighted scale.
Power supply: 220-240 V 1ph 50/60 Hz

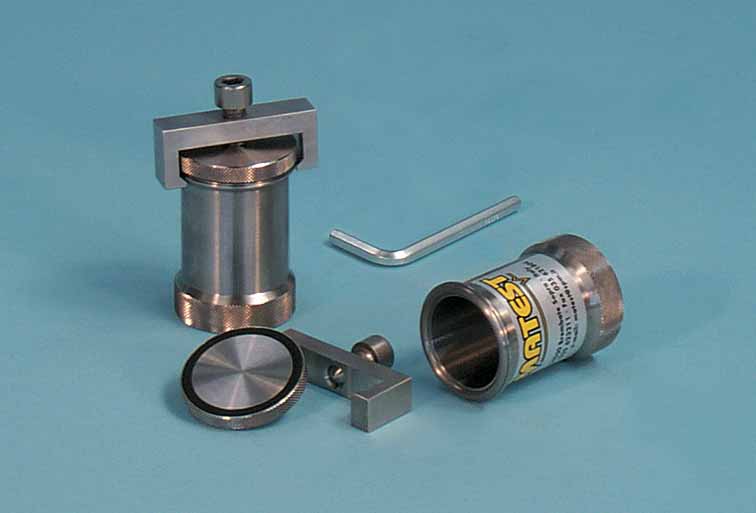

REACTION CONTAINER
Used for the chemical determination of the potential reactivity of aggregates with alkalies in portland cement concrete.
Manufactured from stainless steel and fitted with an air-tight cover.
Capacity 60 ml approx.
Weight: 2 Kg

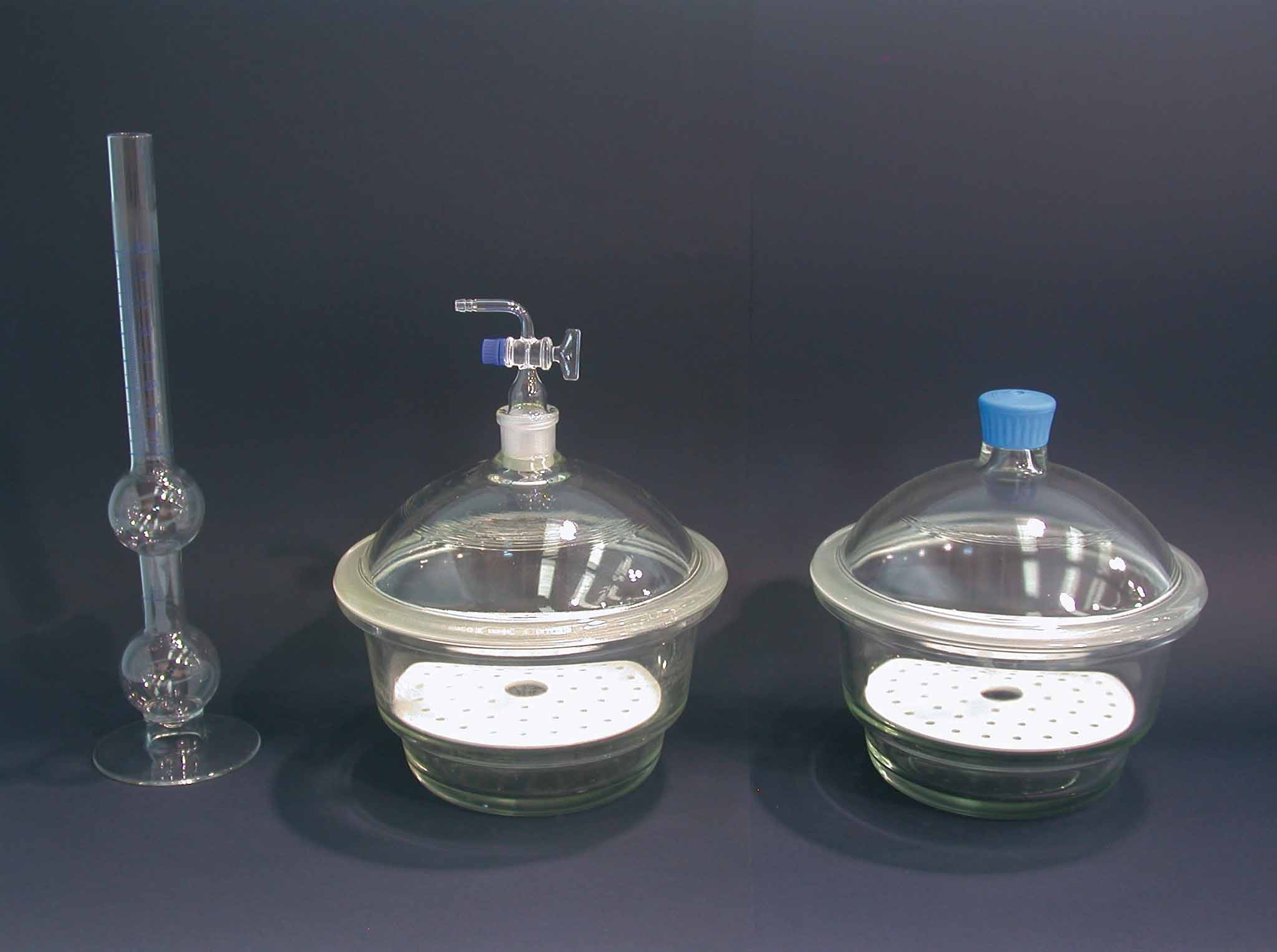

CHAPMAN FLASK
Used for field determination of the amount of surface moisture in fine aggregates. Graduated to 200 ml between the two bulbs and from 375 up to 450 ml above the second bulb.
Weight: 500 g
DESICCATOR BOROSILICATE GLASS DIA. 250 mm
Complete with perforated porcelain plate.
Dia. 250 mm, without vacuum.

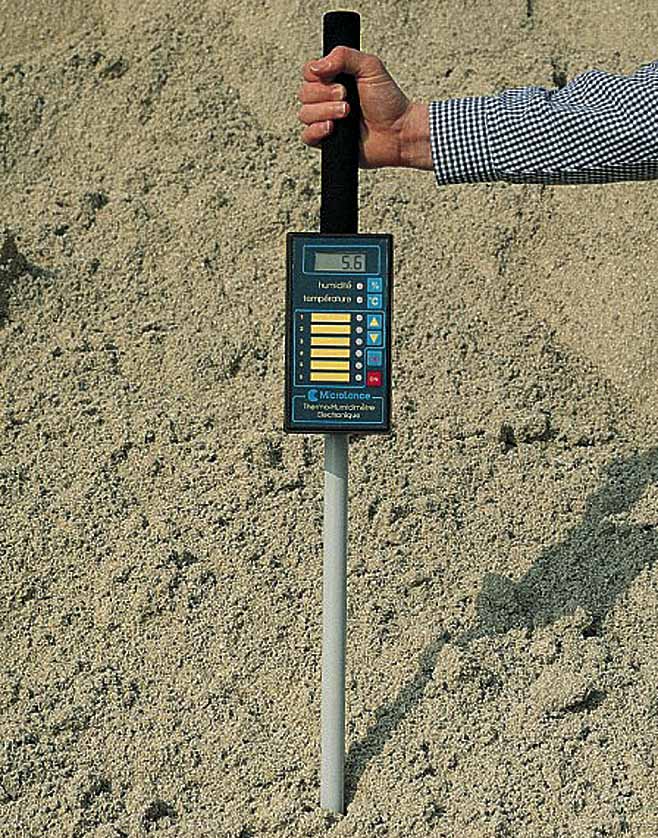

MOISTURE METER MICROLANCE - 1 METER ROD
This electronic tester measures and visualizes directly on the display the moisture percentage and temperature of sand and fine aggregates up to max. dia. of 10 mm by simply inserting the crucible tip.
Suitable for both site and laboratory tests.
Moisture range: 0-35%, accuracy 0,5%
Measuring deep: 1000 mm
Temperature range: -20°C. to +60°C. accuracy 0,5°C.
Battery: 4x1.5V AA cells
Dimensions: 120x120x1200 mm.
Weight: 2 Kg

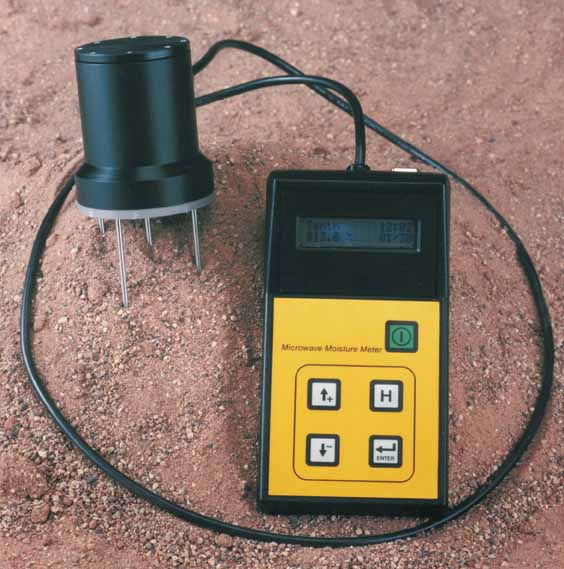

MOISTURE DIGITAL MICROWAVE PORTABLE METER
For accurate, fast and easy determination of moisture content in sand, fine and coarse aggregates up to 25 mm diameter.
By utilizing the latest microwave and microprocessor technology, and simply insert the 5 prongs into the material to be measured, the unit display the percentage of moisture content.
Measuring range: 0 - 20% with +/- 0,2% accuracy.
Frequency: 50 Mhz; RS232 data link; over 150 readings storage.
Power: 4 AA batteries.
Weight: 1800 g
