BEARING PLATE 600 mm DIA. CAST ALUMINIUM
The plate is equipped with a central device to measure the static deformation of road pavements (EV2) with the Benkelman Beam, and the bearing capacity of a soil in-situ (Standard:CNR N. 146, method A)
The plate foresees also three screwed lateral holes for three point measurements of the bearing capacity of a soil in-situ (Standards: CNR N. 146 method B / BS 1377:9 / ASTM D1195 / ASTM D1196 / CNR N. 92)
Supplied complete with coupling device to the hydraulic jack.
Weight: 25 kg

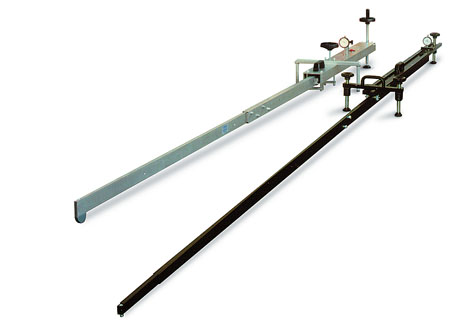

BENKELMAN BEAM APPARATUS, NF / LCPC
Benkelman Beam apparatus according to Standards: NF P98-200-2 / LCPC.
BENKELMAN BEAM APPARATUS, CNR
Alluminium alloy made, complete with dial indicator and accessories, it is utilized to measure the deflection of the road surface when loaded by the wheels of vehicles. The beam is put in contact with the pavement under test between the tires of the vehicle.
The measurement of the deflection is performed when the vehicle passes over the test area. Lenght of the Benkelman beam is 250 cm. Beam fulcrum ratio 4:1
Supplied complete with wooden carrying case.
Weight: 16 kg
SURFACE IRREGULARITY TRAVELLING BEAM DEVICE
Used to detect and check any irregularity in both bituminous and concrete road surfaces. The unit consists essentially of a 3 metre long beam fixed on two rigid wheels at the extremities. In the middle of the beam a sensing unit comprising a wheel connected
to an indicator provides a magnification of 4:1 and measures deviations of the surface. The deviations are shown on a scale calibrated in increments of 2 mm up to 10 mm and 5 mm up to 25 mm.
The beam is supplied as three sub-assemblies which are quickly assembled on site.
Weight: 55 kg approx.
NON NUCLEAR ELECTROMAGNETIC DENSITY GAUGE, INFRARED TEMPERATURE SENSOR
The Electromagnetic Density Gauge is a non nuclear sensing device that allow field density real time measurement of asphalt. This technically advanced instrument for quality control allow operators to immediately identify spots with low pavement density and trigger corrective actions leading to more uniform pavements.
Density measurements are related to the dielectric property of asphalt in the first 40 mm of depth.
This instrument allow continous reading along the pavement to detect air voids or non uniformity.
The L-Shaped handle is provided to reduce bending over when performing many measures. Tests can be executed also at high temperatures, when the pavement is still hot (max 175°C).
The Electromagnetic densimeter allow:
- Pavement tests.
- Real time measurements, in a continous mode.
- LCD visualization of:
• Average density.
• % Maximum density.
• % Air voids.
- No moisture or temperature corrections are needed.
- Non Nuclear device, so maximum safety for operator
- Setting on a referenced test plate to check equipment stability quickly.
- Storing up to 999 measurement data records and RS-232 computer interface.
- Infrared sensor for an accurate measurement of the road surface (optional).
- Rechargeable batteries for 32h continous usage.
- Charging supply for standard 230V/50Hz or 12Vcc.
Dimensions: 229x406x152 mm
Weight: 5 kg
SAND PATCH EQUIPMENT
Road and airfield surface characteristics.
Measurement of pavement surface to determine the average macrotexture depth using a volumetric patch technique.
The equipment comprises:
- Spreader disc with handle and rubber coated surface.
- Wind shield
- Soft and wire brushes.
- Screw-adjusted compass 300 mm graduated rule.
- Metallic cylinder for spheres volume measurement.
- Two glass pyknometers with metallic screw top and pouring hole
- Three graduated cylinders 10, 25 and 50 ml cap.
- Knee-guard
- Carrying case
Weight. 4 kg approx.
PRESSURE AGEING VESSEL
The unit has been developed to simulate the ageing of asphalt mixtures after 5 to 10 years.
The sample is exposed to high pressure and temperature for 20 hours, to simulate the effect of a long time oxidative ageing by verifying the penetration and softening point characteristics.
The Pressure ageing vessel is supplied complete with accessories, software, RS232 with cable to PC connection.
To perform the test a compressed air source must be provided.
Power supply: 230V 1ph 50Hz 550W
Dimensions: 660x450x410 mm
Weight: 76 kg approx.
PENSKY- MARTENS DIGITAL FLASH POINT TESTER
Used for the determination of the flash point of petroleum products by the Closed Cup Test, with a Flash Point between 40°C to 360°C.
Supplied complete with stirrer, shield for radiations, cast iron bath, electric heater with digital thermoregulator two thermometers ASTM 9C -5 + 110°C div. 0,5 C, and ASTM 10C +90 +370°C div. 2°C.
The tester is equipped of a gas flame feeder.
Power supply: 230 V 1 ph 50 Hz 600 W.
Weight: 6 kg
TAG OPEN -CUP VISCOMETER . FLASH POINT
For the determination of open cup flash points of volatile flammable materials having
flash points between 0 and 175 °F.
Supplied complete with cup, water bath, thermoregulated heating device, thermometers
ASTM 9C -5 to +110°C and ASTM 57C -20 to +50°C.
Power supply: 230 V 1 ph 50 Hz 600 W.
Dimensions: 200x300x400 mm approx.
Weight: 6 kg
TAG CLOSED-CUP VISCOMETER. FLASH POINT
Suitable for testing volatile flammable flashing between 0 and 175°F (except fuel oils).
Supplied complete with cup, water bath, lid, slide, thermoregulated heating device, thermometer ASTM 9C range -5 to +110°C and thermometer ASTM 57 C range -20 to +50°C.
Power supply: 230 V 1 ph 50 Hz 600 W.
Dimensions: 200x300x400 mm approx.
Weight: 6 kg
STORAGE STABILITY OF ASPHALT EMULSIONS
This apparatus is used for the determination of the storage stability of emulsions by decantation. It consists of a 12V current stabilized source, cylindrical electrode, base with
holder, stainless steel vessel 500 ml capacity, watch glass.
Power supply: 230V 1ph 50/60Hz
Dimensions: 200x200x500 mm
Weight: 5 kg approx.

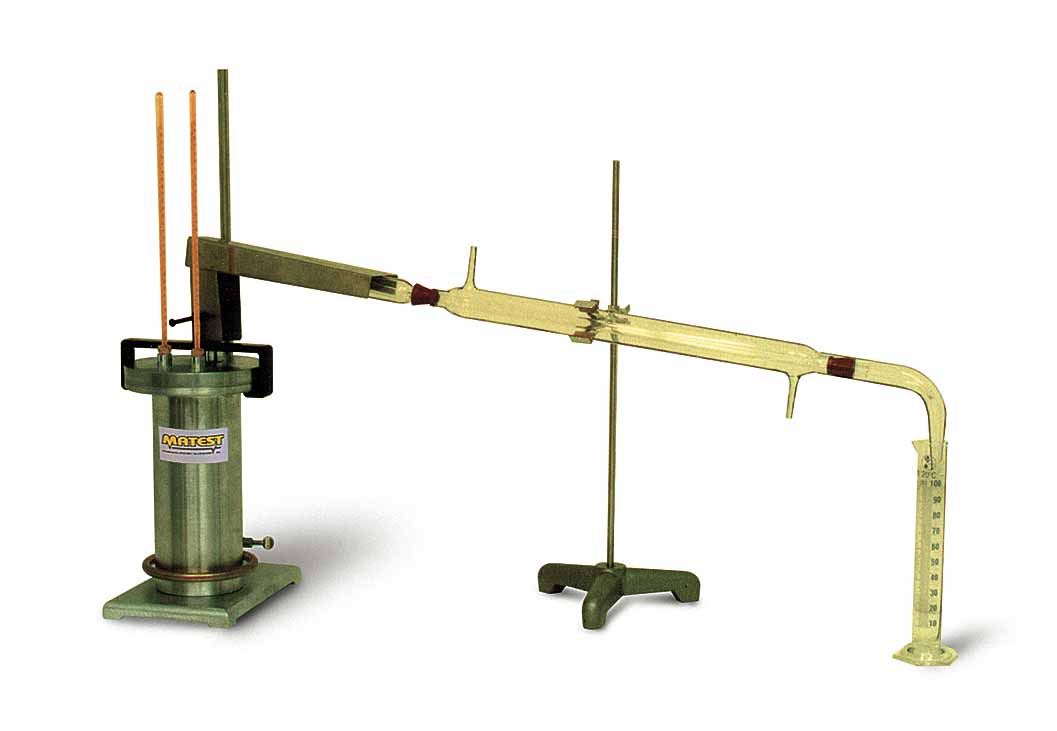

EMULSIFIED ASPHALT DISTILLATION APPARATUS
Used for the determination of cut-back asphaltic materials by the distillation test.
The set is formed by: aluminium still container, glass connectors including condenser, stands, graduated cylinder, two thermometers ASTM 7C range -2 to +300°C, gas ring burner with gas stop valve controlled by a flame sensor.
It can be sold in CE markets, but not usable in closed spaces.
Weight: 12 Kg

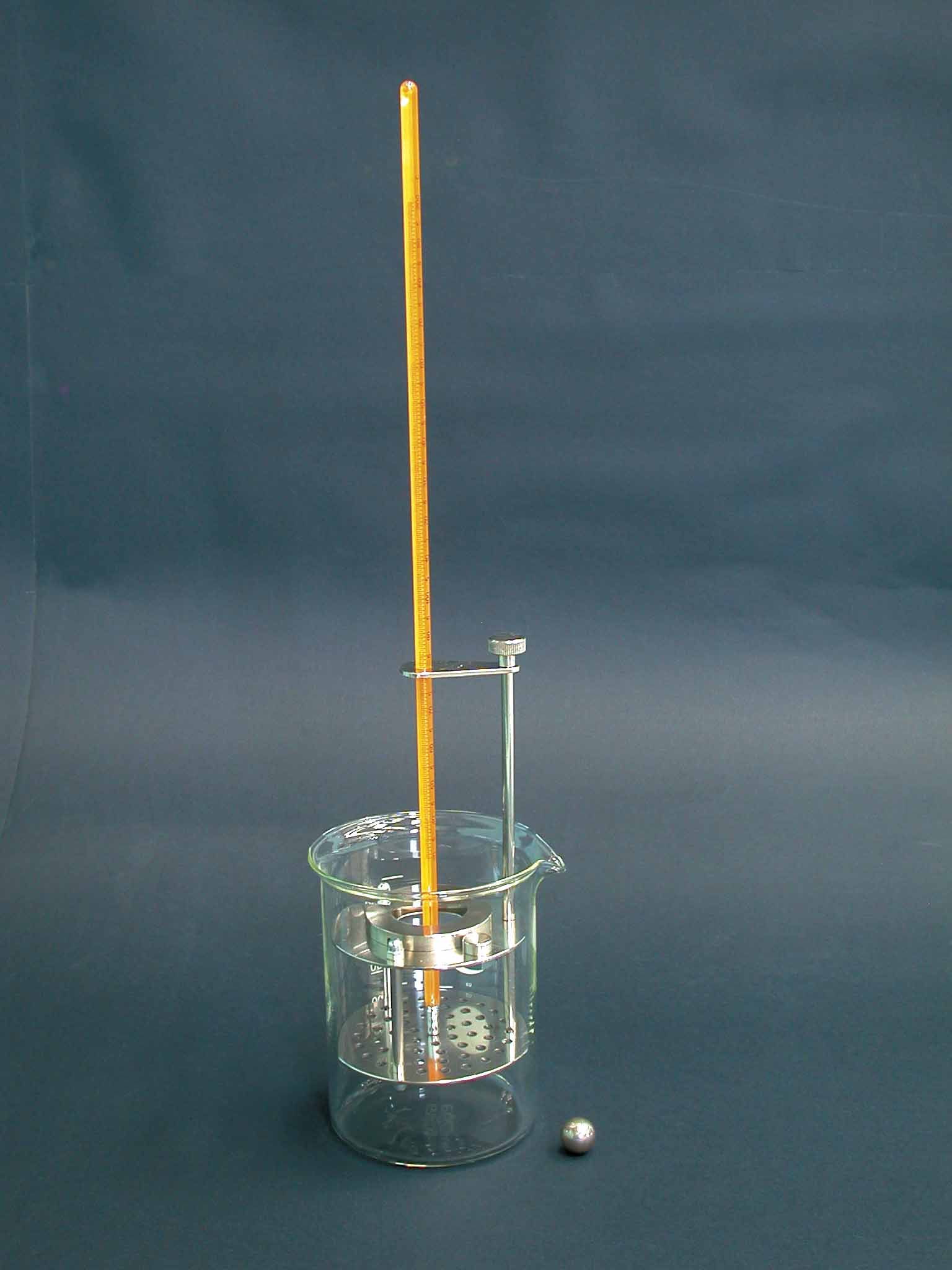

WILHELMI SOFTENING POINT APPARATUS
Used for determining the softening point of bituminous materials for road construction,
according to Wilhelmi method.
The softening point is the temperature where a layer of thermoplastic material has a deformation given by a steel sphere weighting 13,9 g.
The apparatus comprises a ring divided in two halves on a metal support frame, glass beaker, steel ball 15 mm dia.
Weight: 2 kg approx.
